Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> A.S.C.D. Control Cannot Be Set Properly

A.S.C.D. Control Cannot Be Set Properly

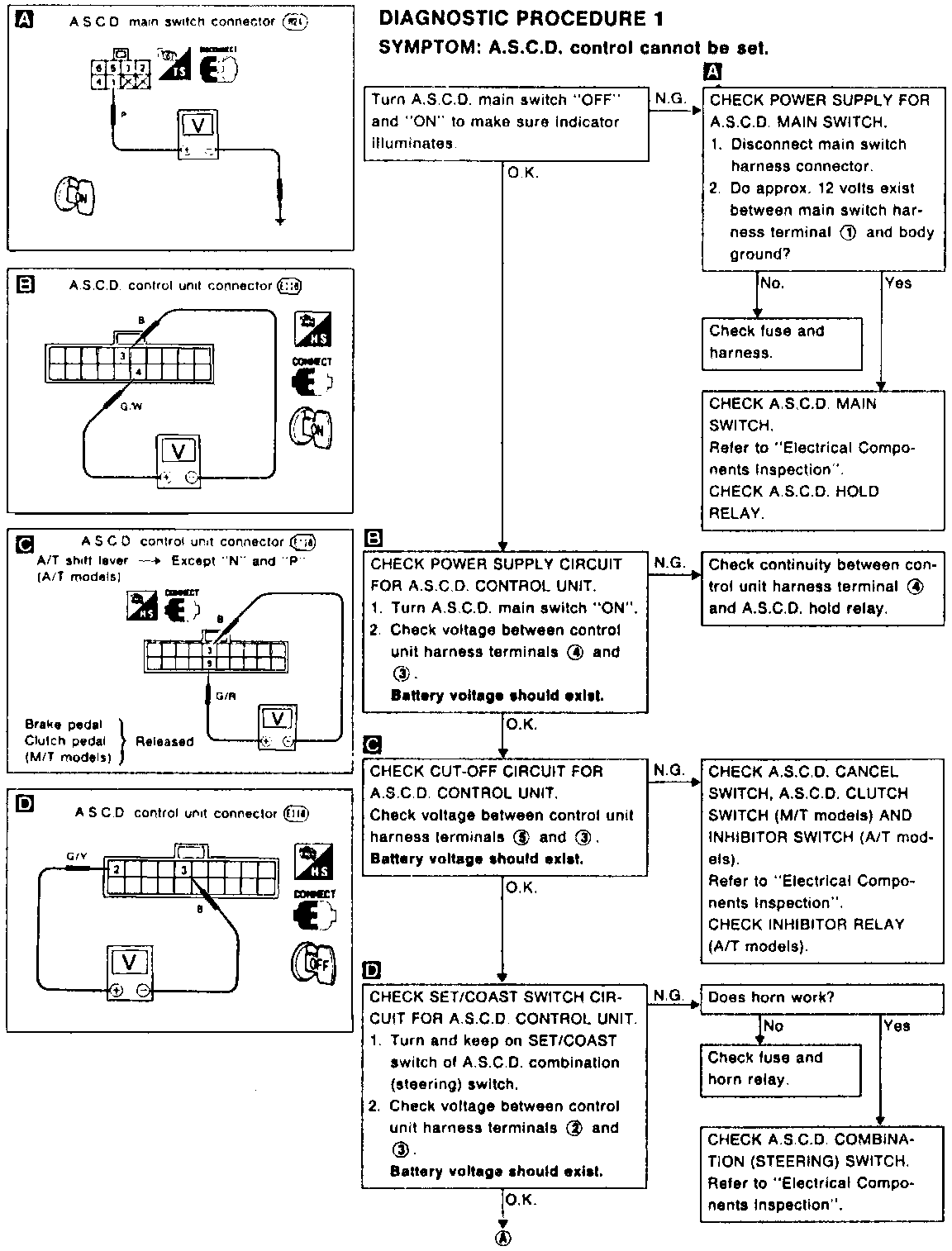

Fig. 47 Test 1: ASCD Control Unit Cannot Be Set (Part 1 Of 2):

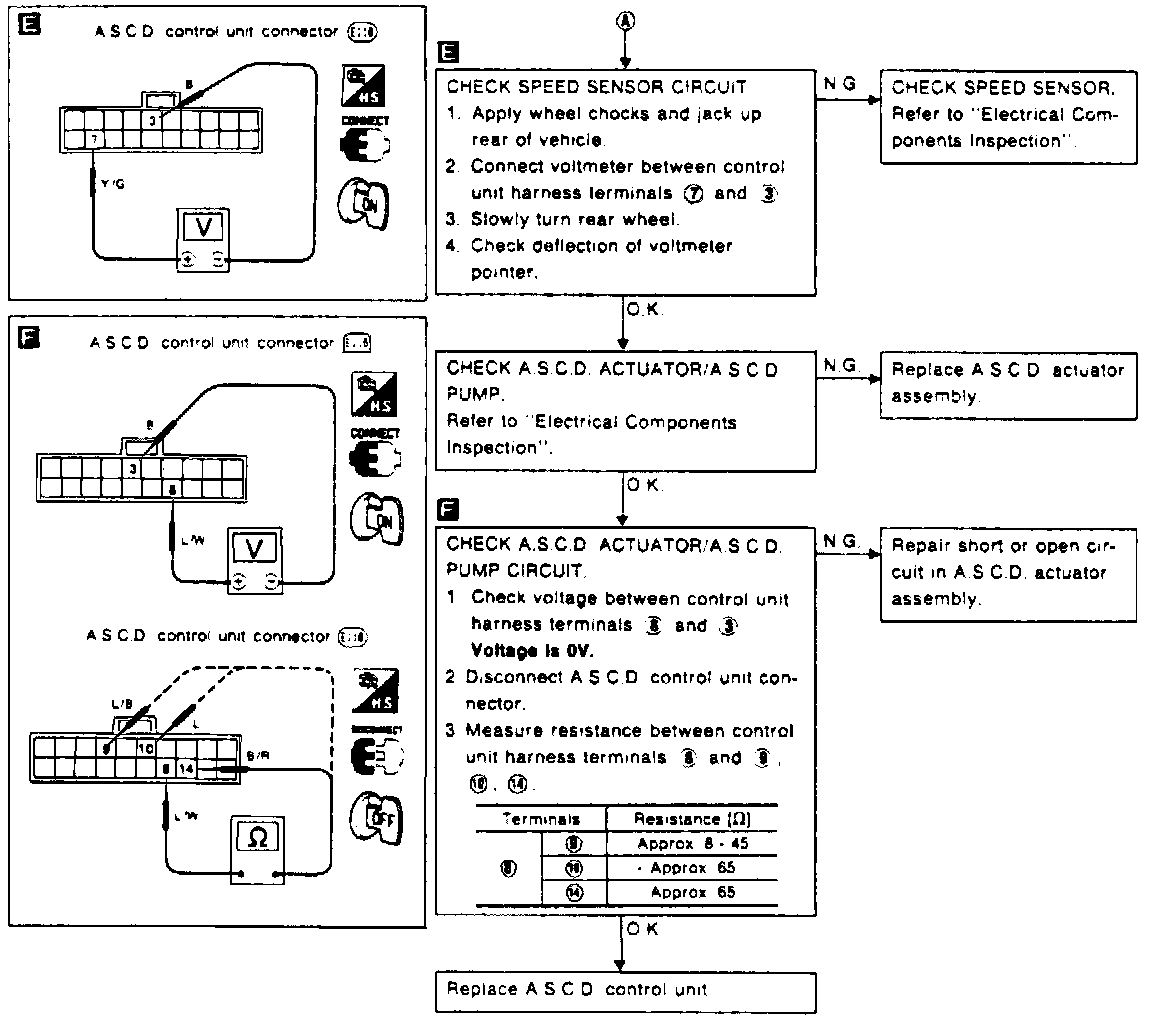

Fig. 47 Test 1: ASCD Control Unit Cannot Be Set (Part 2 Of 2):
