Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Electrical Component Check

Electrical Component Check

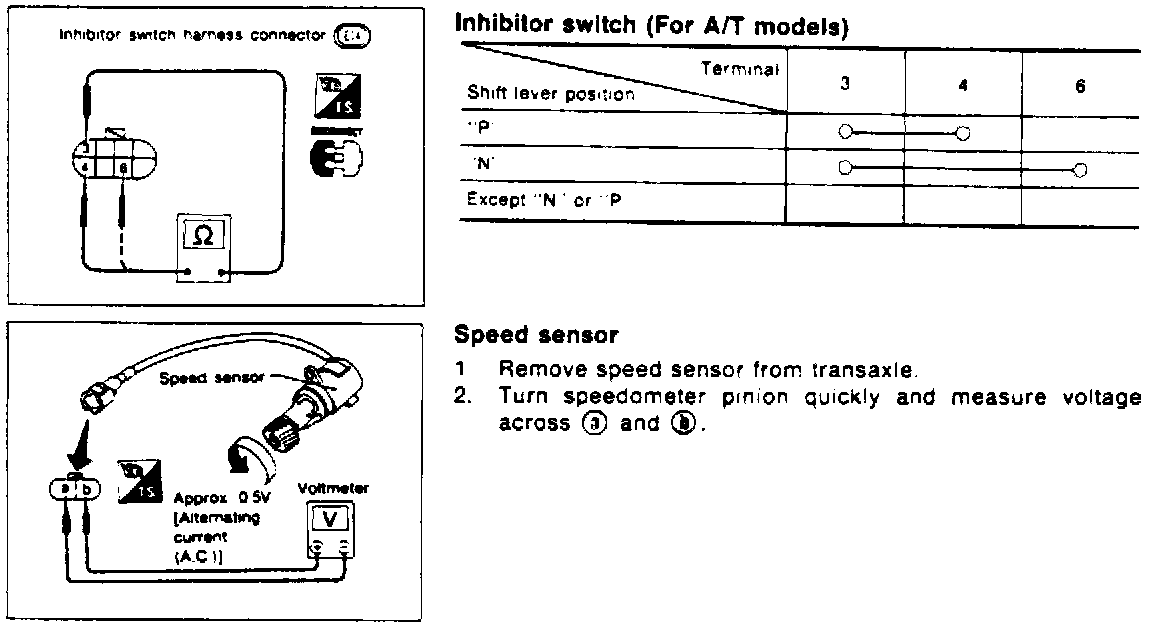

Fig. 82 Electrical Component Check (Part 1 Of 2):

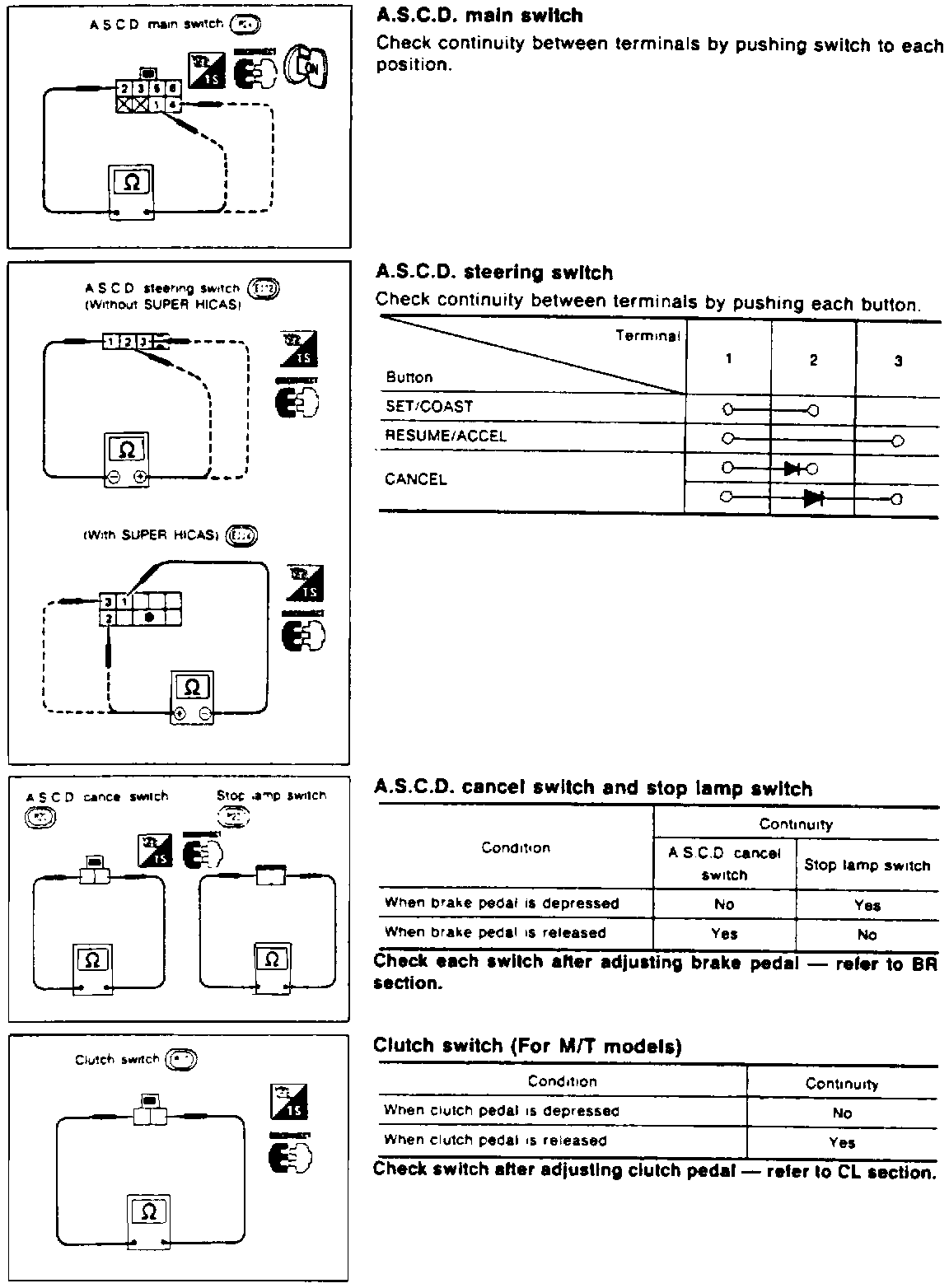

Fig. 82 Electrical Component Check (Part 2 Of 2):
