Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Actuator Check

Actuator Check

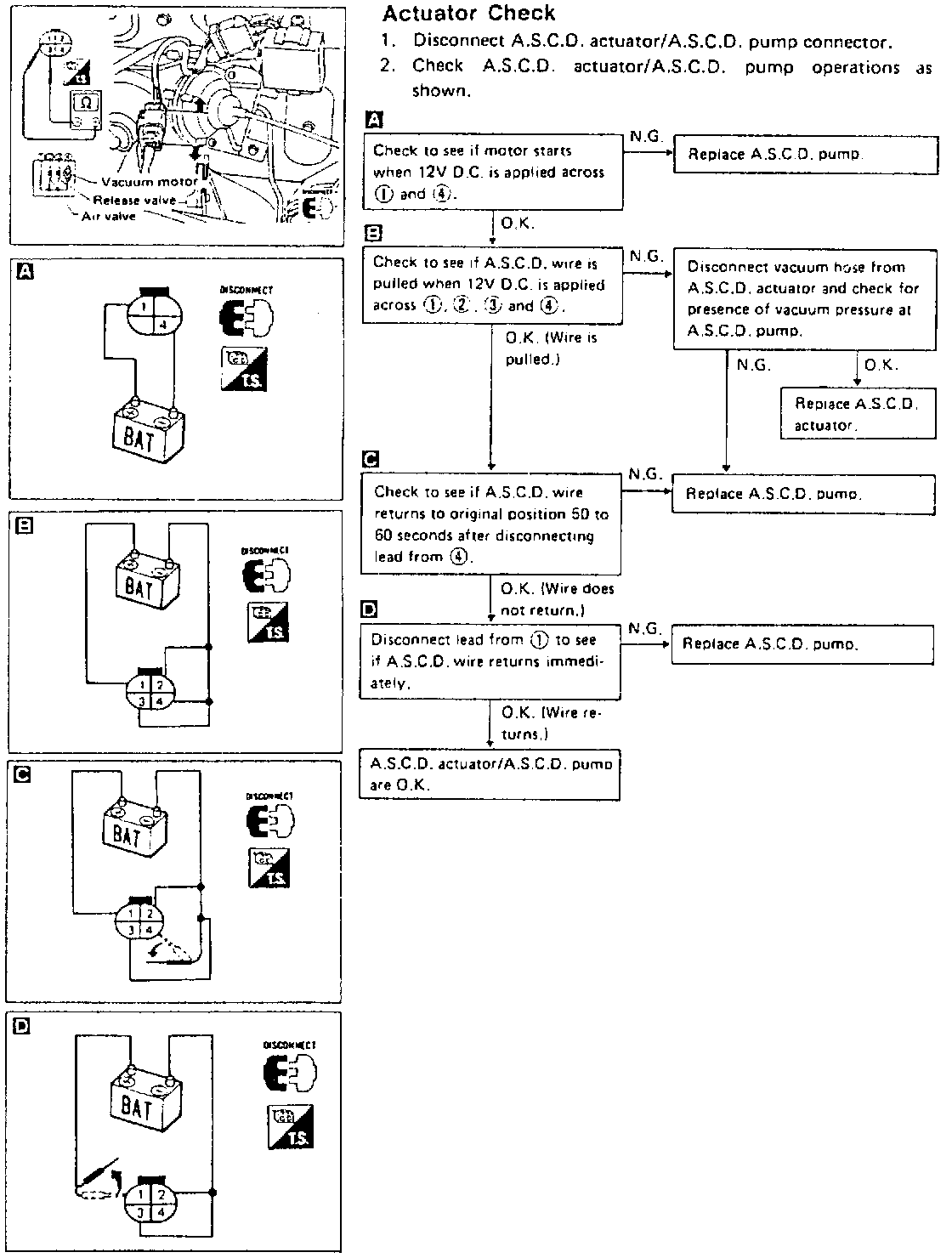

Fig. 80 Actuator Check:
