A.S.C.D. Actuator
A.S.C.D. Actuator

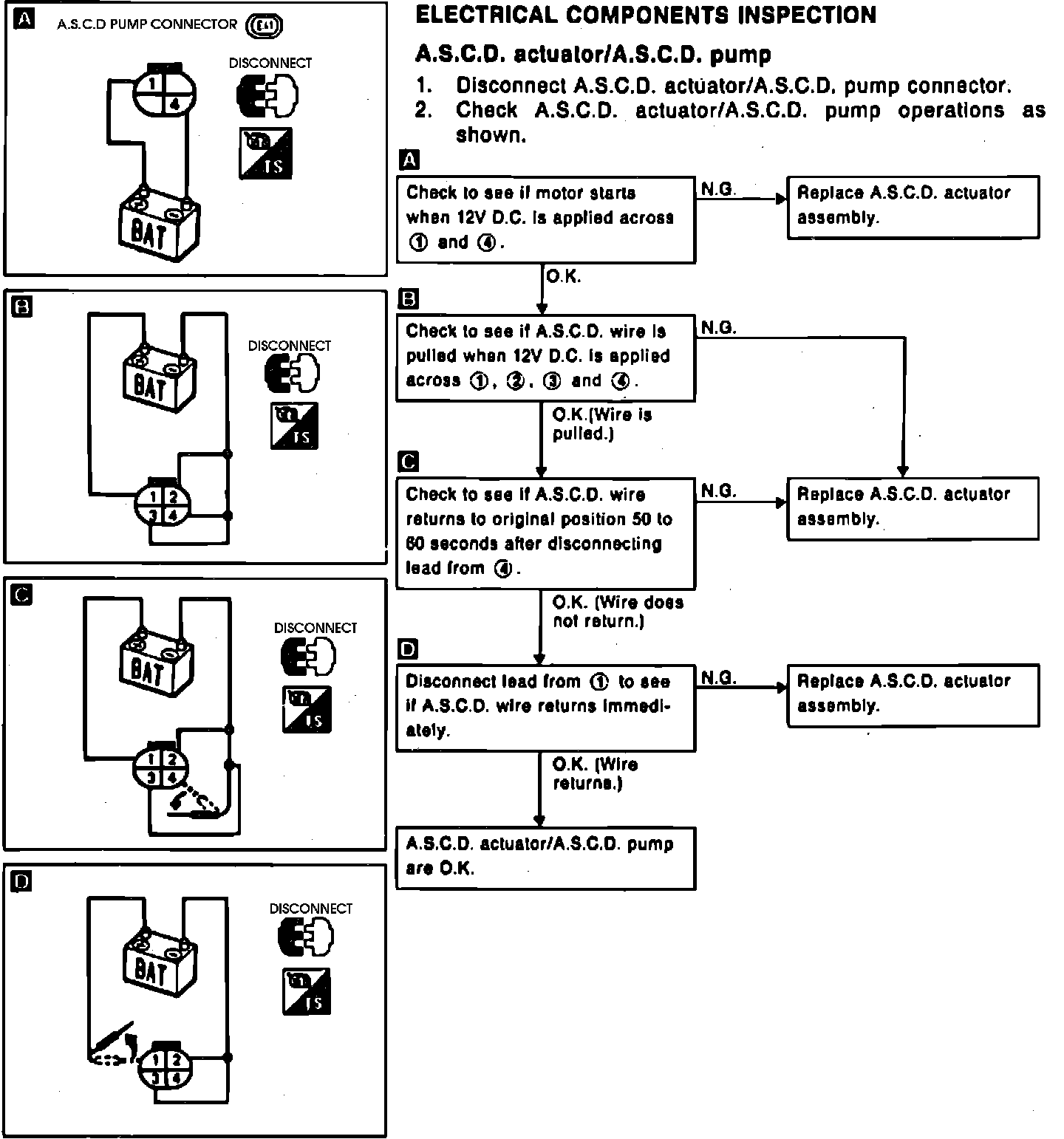

Fig. 92 Actuator Check:
Refer to
Fig. 92
for ASCD actuator test procedures.
