Parking Brake Cable: Service and Repair

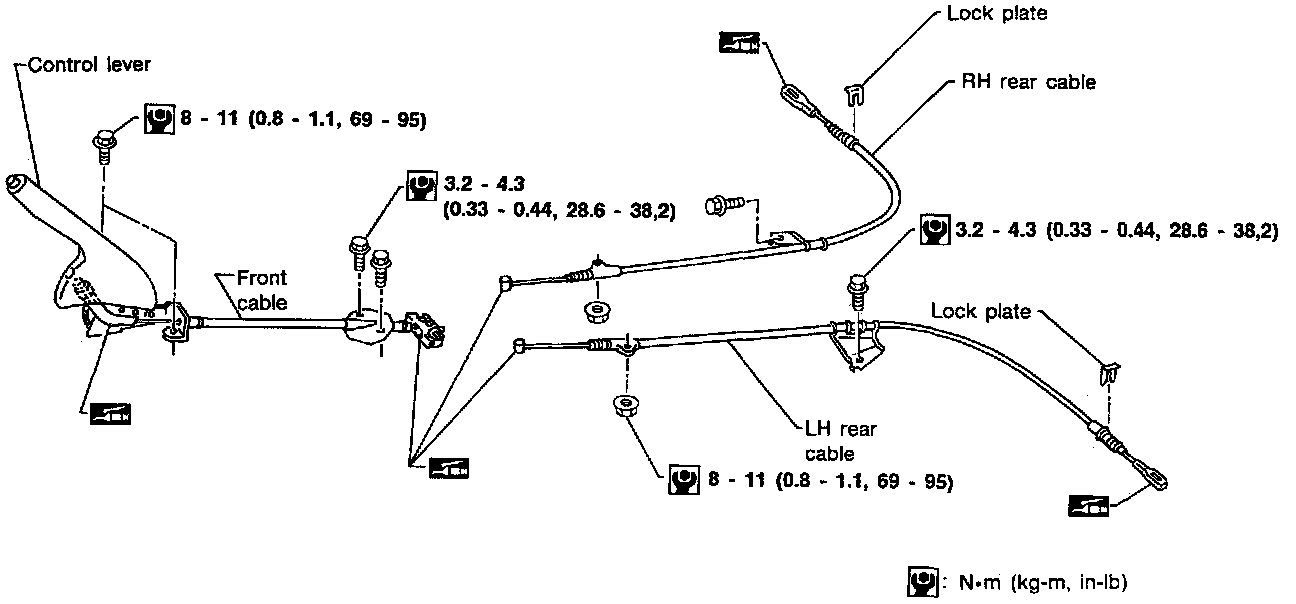

Exploded View Of Parking Brake Cable:

REPLACEMENT
1. To remove parking brake cable, first remove center console.
2. Disconnect warning lamp connector.





3. Remove bolts, slacken front cable and remove adjusting nut.

Parking Brake Lock Plate And Cable:

4. Remove lock plate and disconnect cable from caliper.

Alignment Mark On Cable Guide:

5. Reverse procedure to install, noting the following. When installing parking brake cable at rear caliper, ensure matchmarks align with cable guide.
