Brake Pressure Modulator Valve
Brake Pressure Modulator Valve

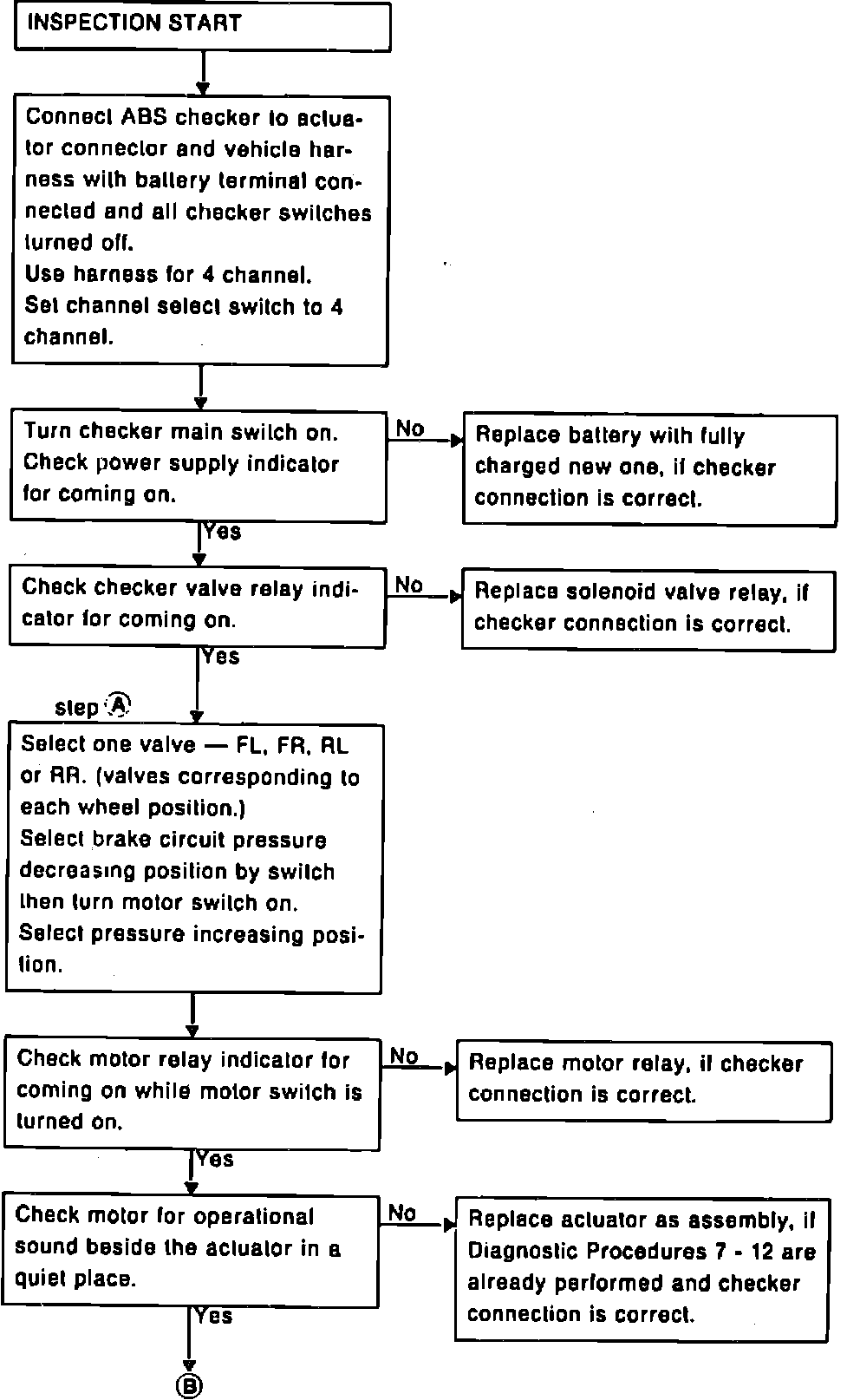

Fig. 43 Electrical Component Inspection (Actuator, Part 1 Of 2).:

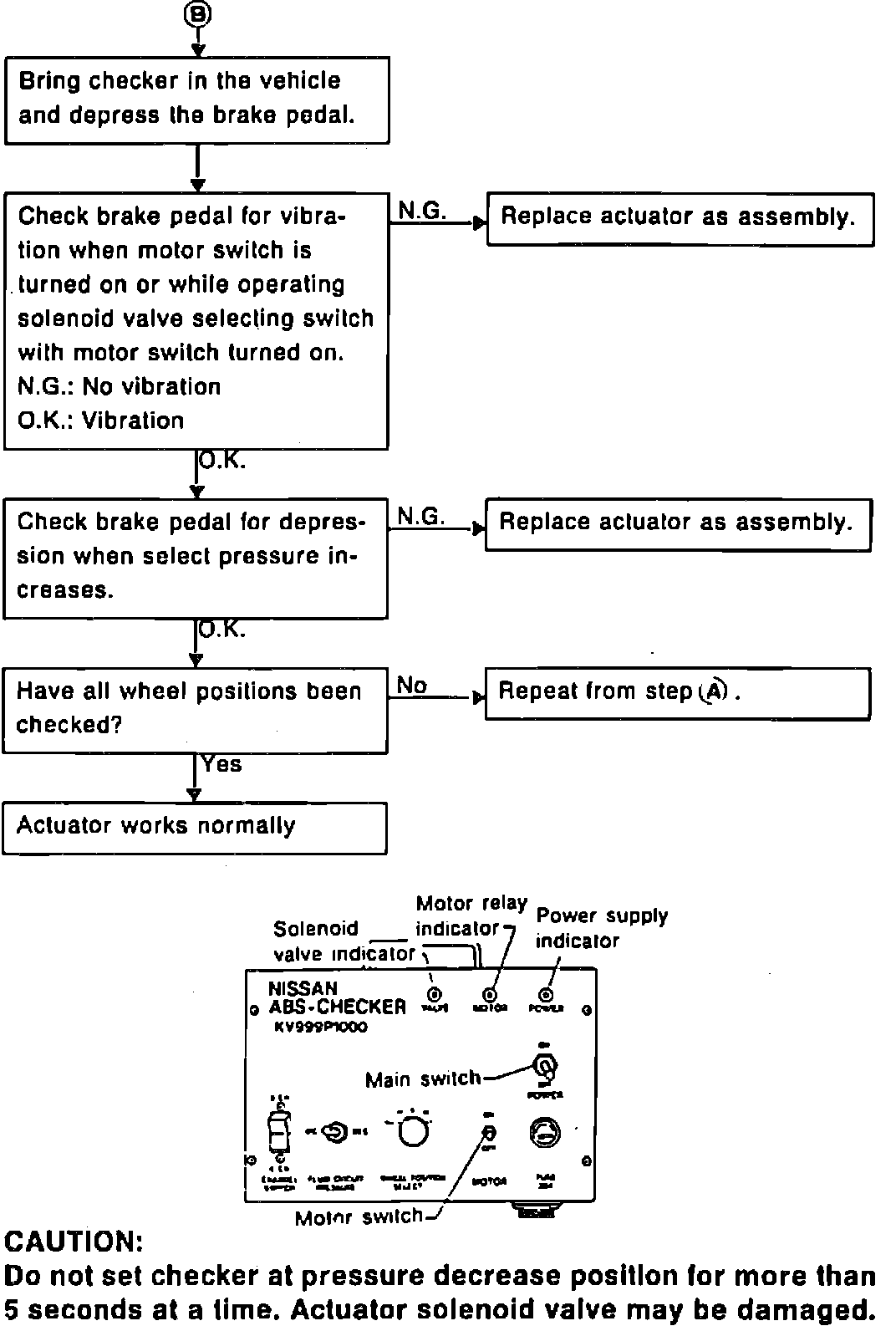

Fig. 43 Electrical Component Inspection (Actuator, Part 2 Of 2).:
