How to Display and Read Diagnostic Trouble Codes

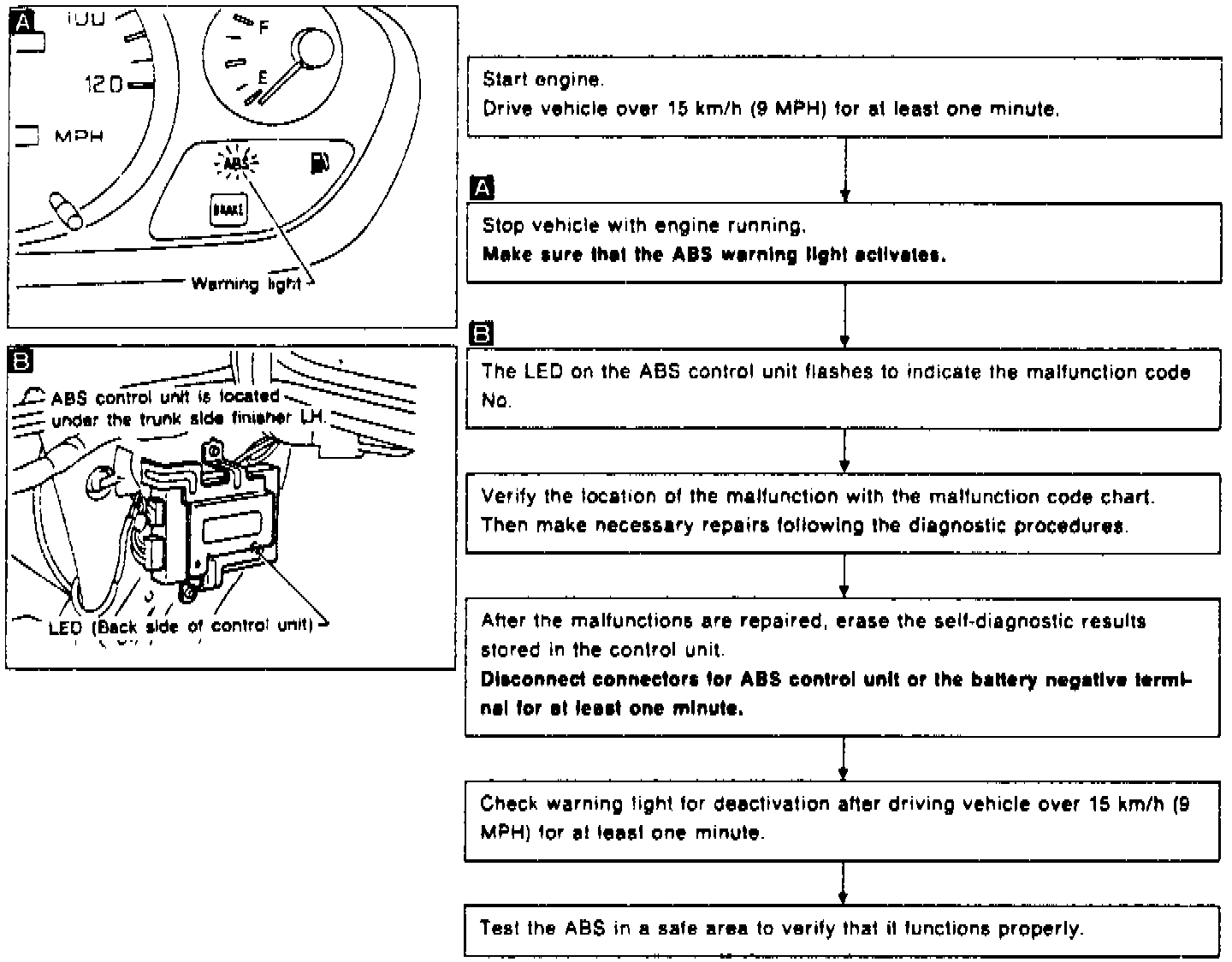

Fig. 25 Self-diagnostic Procedure:

When a problem occurs in the ABS system, a warning light will flash on the instrument panel. To activate ABS Self-Diagnosis, ground the self diagnosis (check) terminal located on the data link connector.
