Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Preliminary Check 3 and 4

Preliminary Check 3 and 4

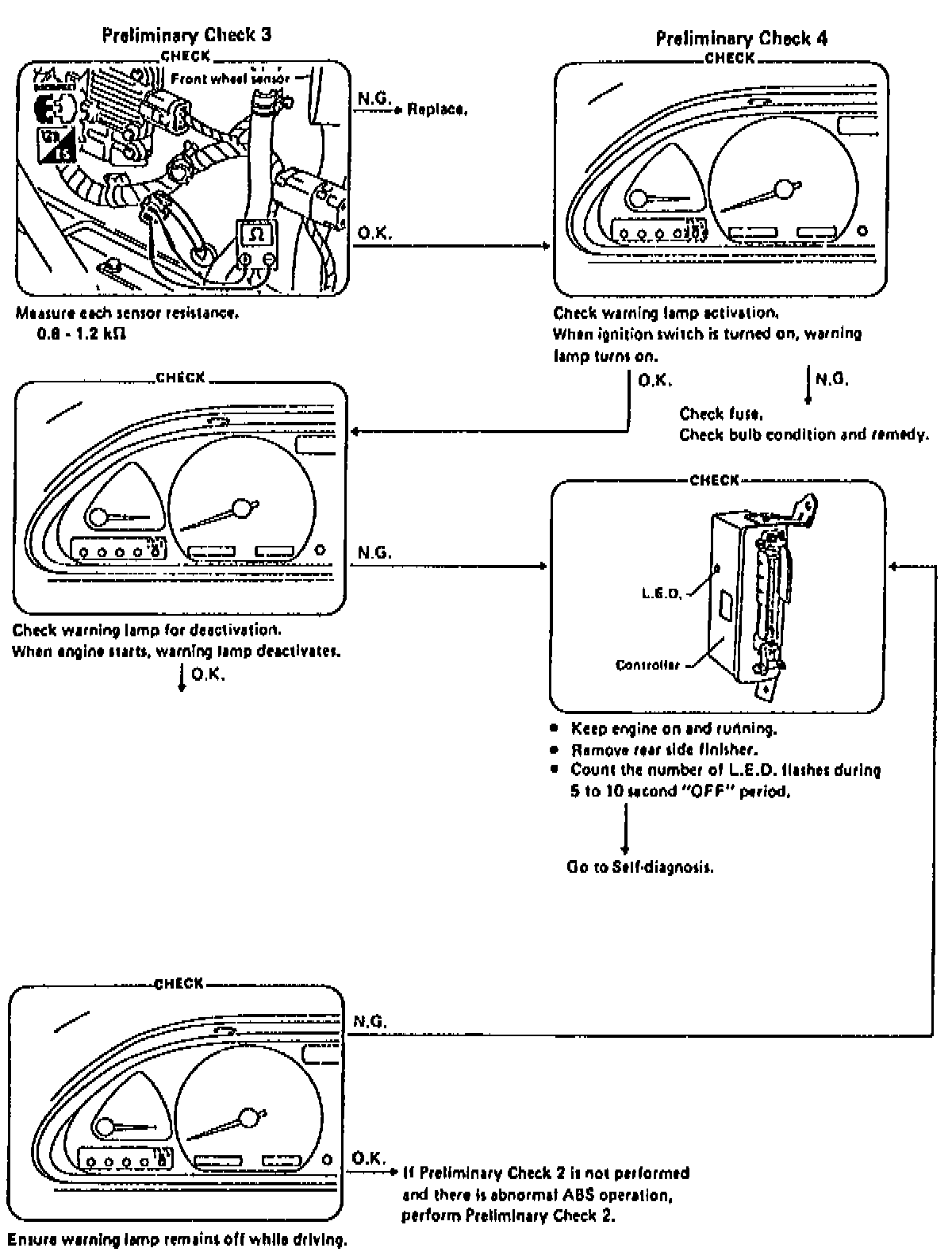

Fig. 17 Preliminary Check 3 & 4:
