Electrical Component Inspection

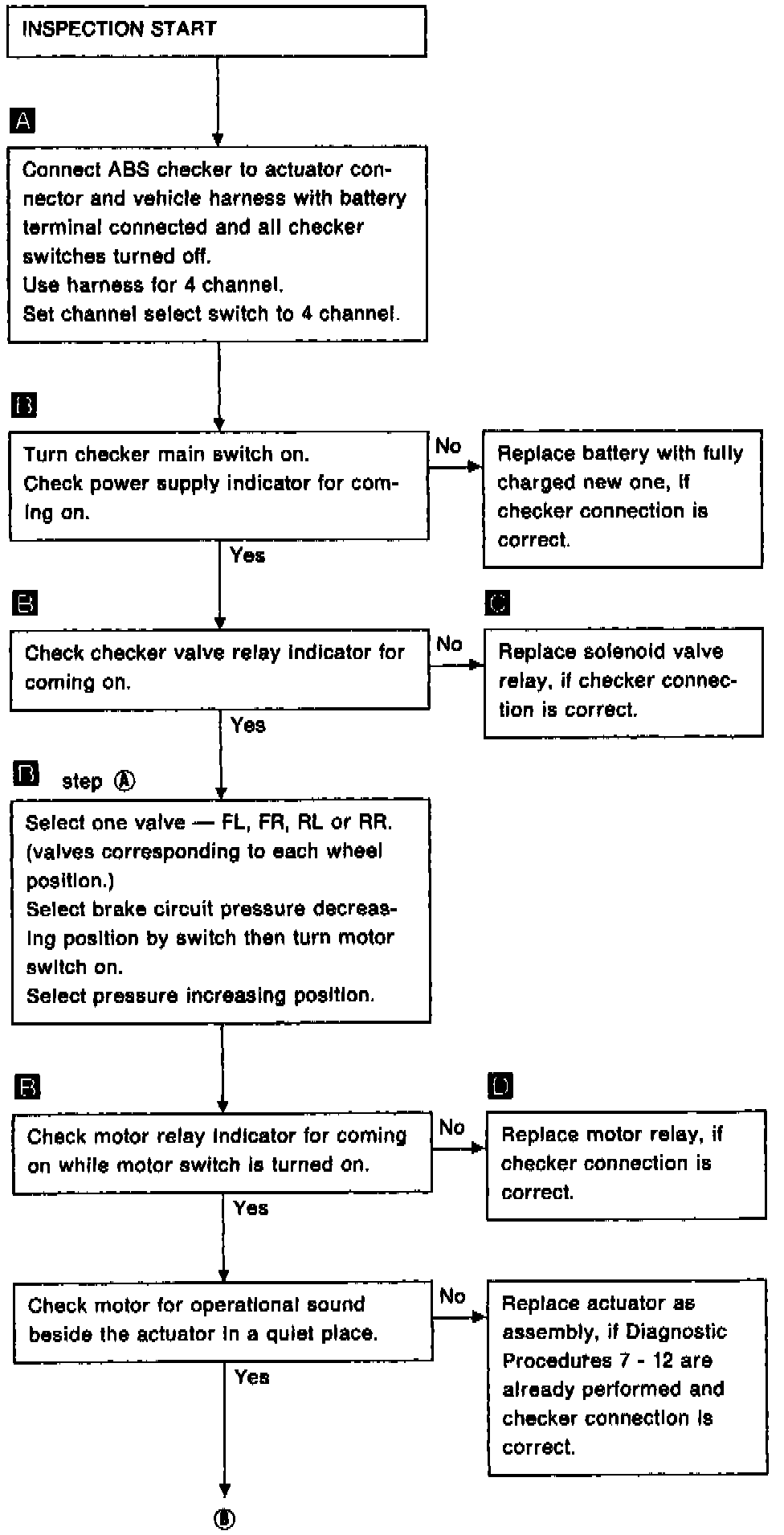

Fig. 203 Electrical Component Inspection (Actuator, Part 1 Of 2):




PART 1 OF 2

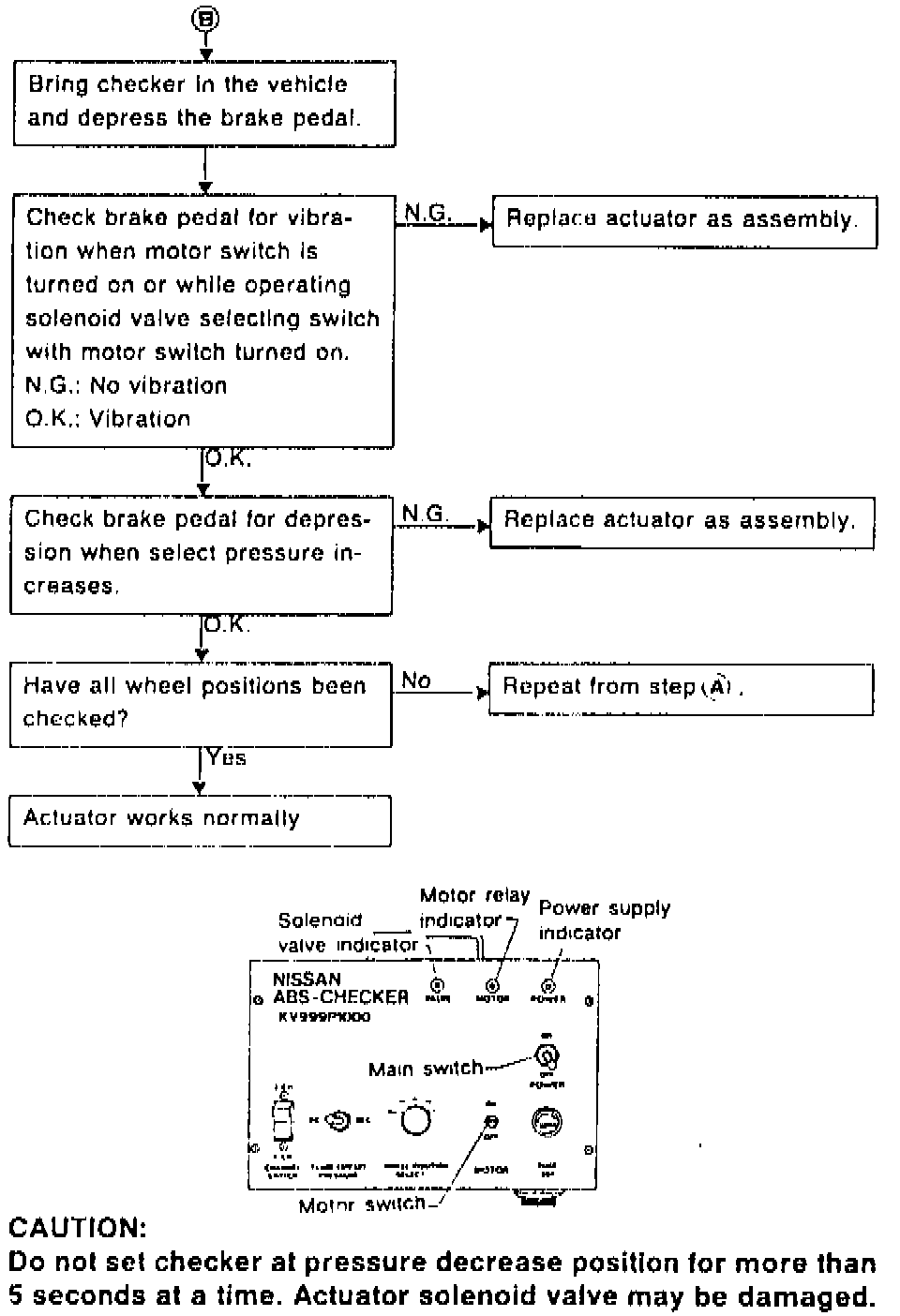

Fig. 203 Electrical Component Inspection (Actuator, Part 2 Of 2):




PART 1 OF 2

Refer to Fig. 203 Part 1 & 2, for electrical component inspection.
