DTC 54

The ECU detected an open or shorted circuit in the wiring between the ECCS and the A/T control units.

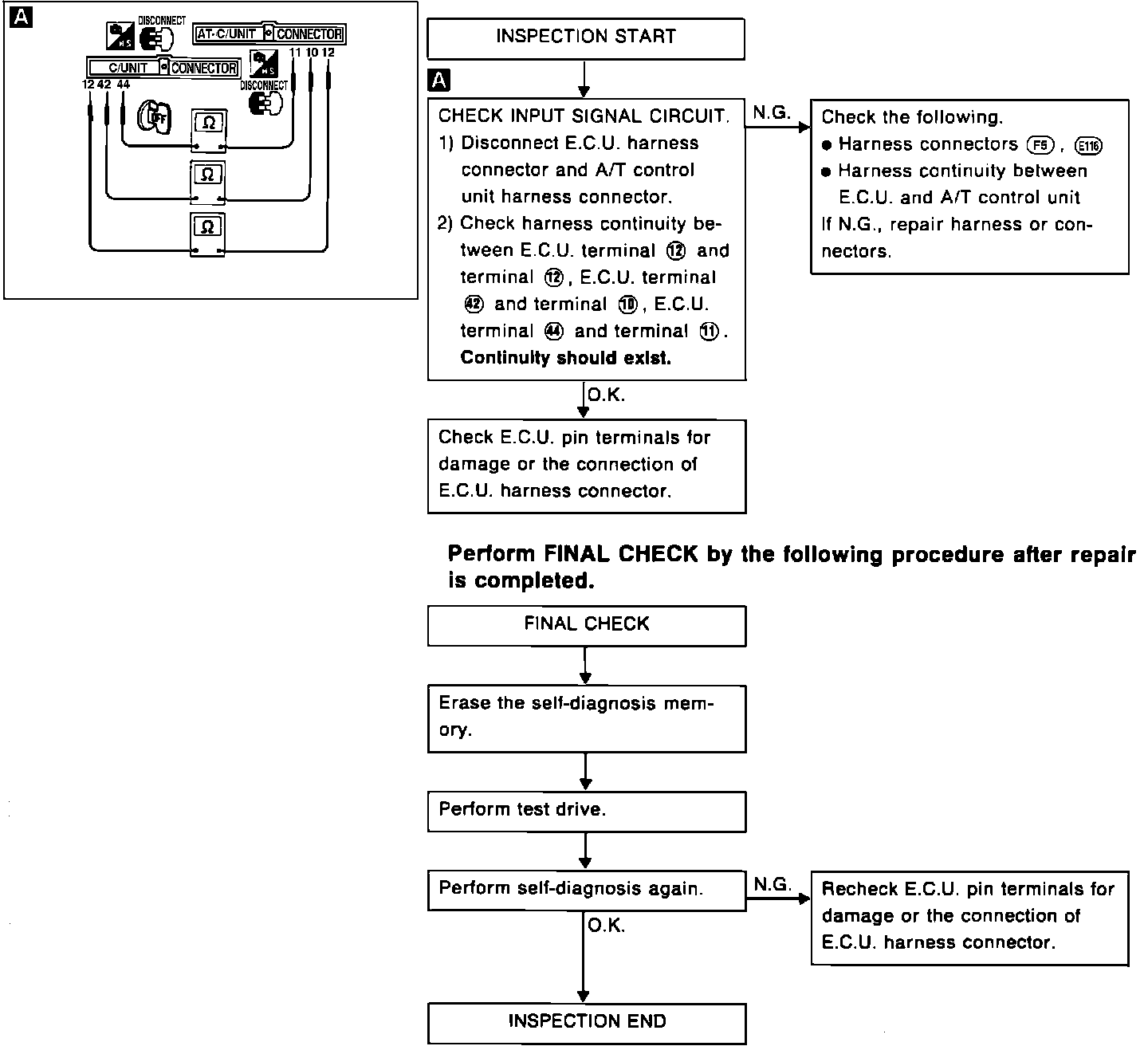

Code 54 - A/T Control Unit Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

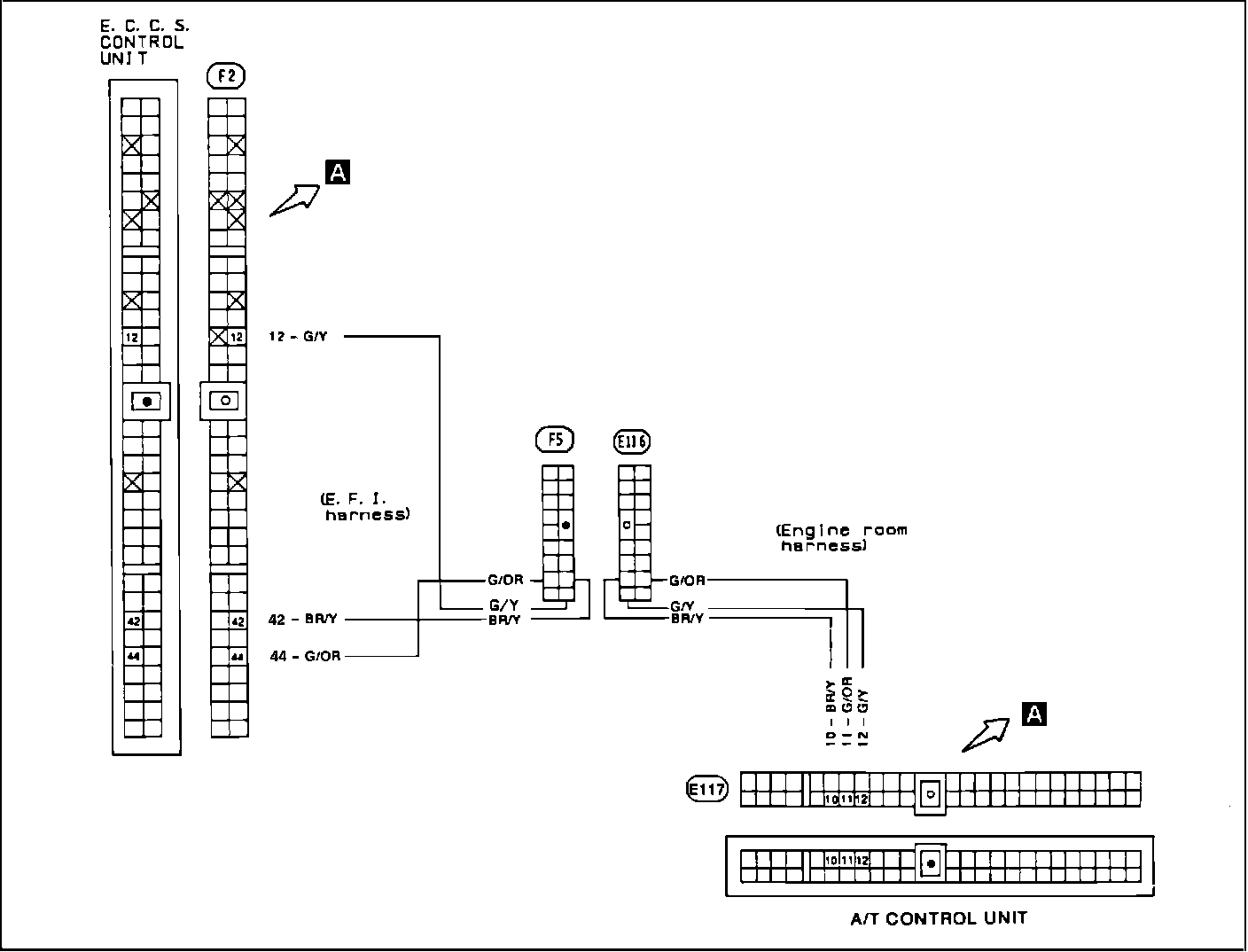

Circuit Diagram:

CIRCUIT DIAGRAM IMAGE
