DTC 32

The EGR temperature sensor (CA. models only) signaled the ECU that the EGR system was inoperative.

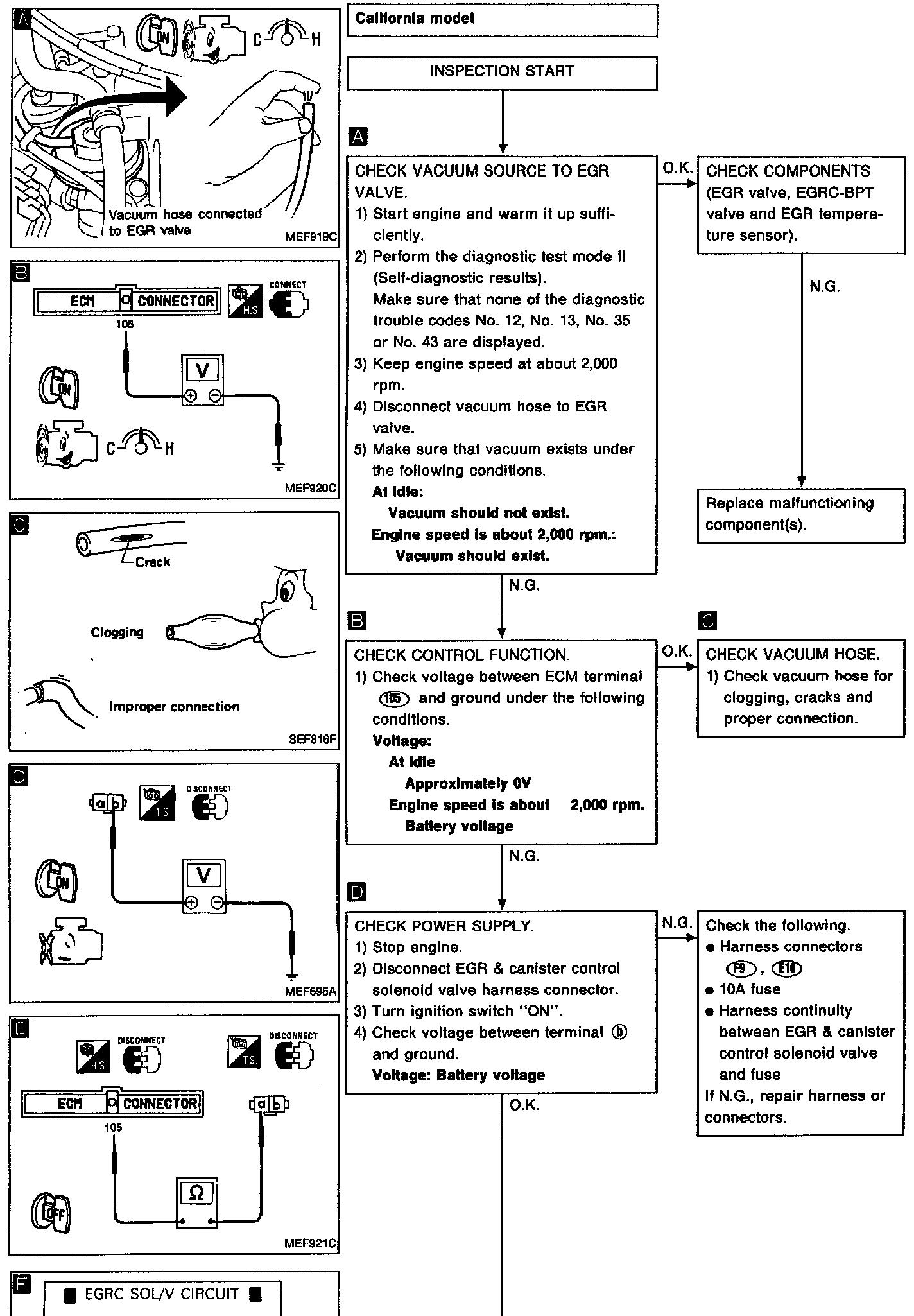

��PCode 32 - EGR Function Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

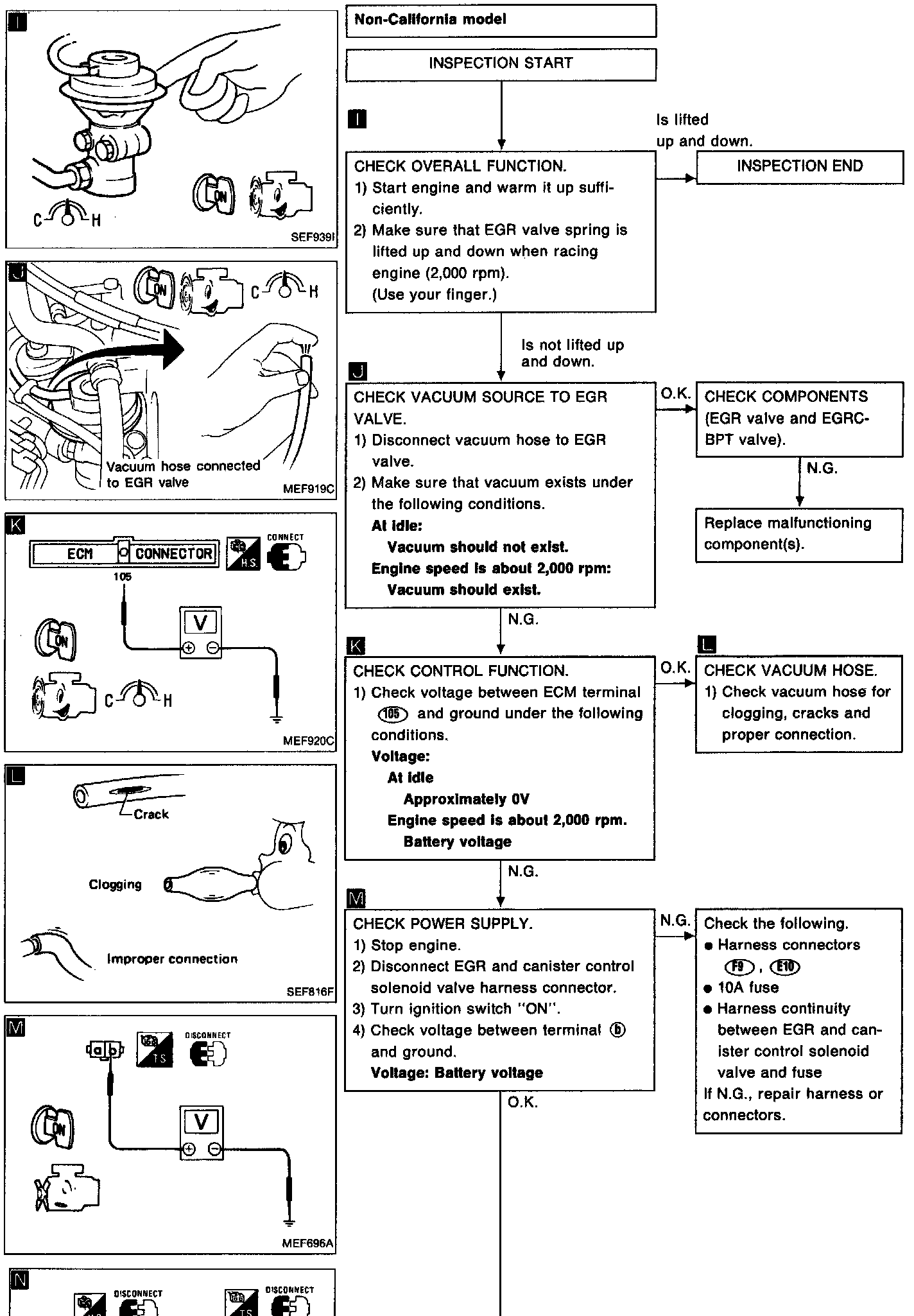

�QCode 32 - EGR Function Diagnostic Chart (Non California):

DIAGNOSTIC CHART IMAGE

Circuit Diagram Non-Calofornia Only:

CIRCUIT DIAGRAM IMAGE

Connector Location:

ELECTRICAL CONNECTORS IMAGE

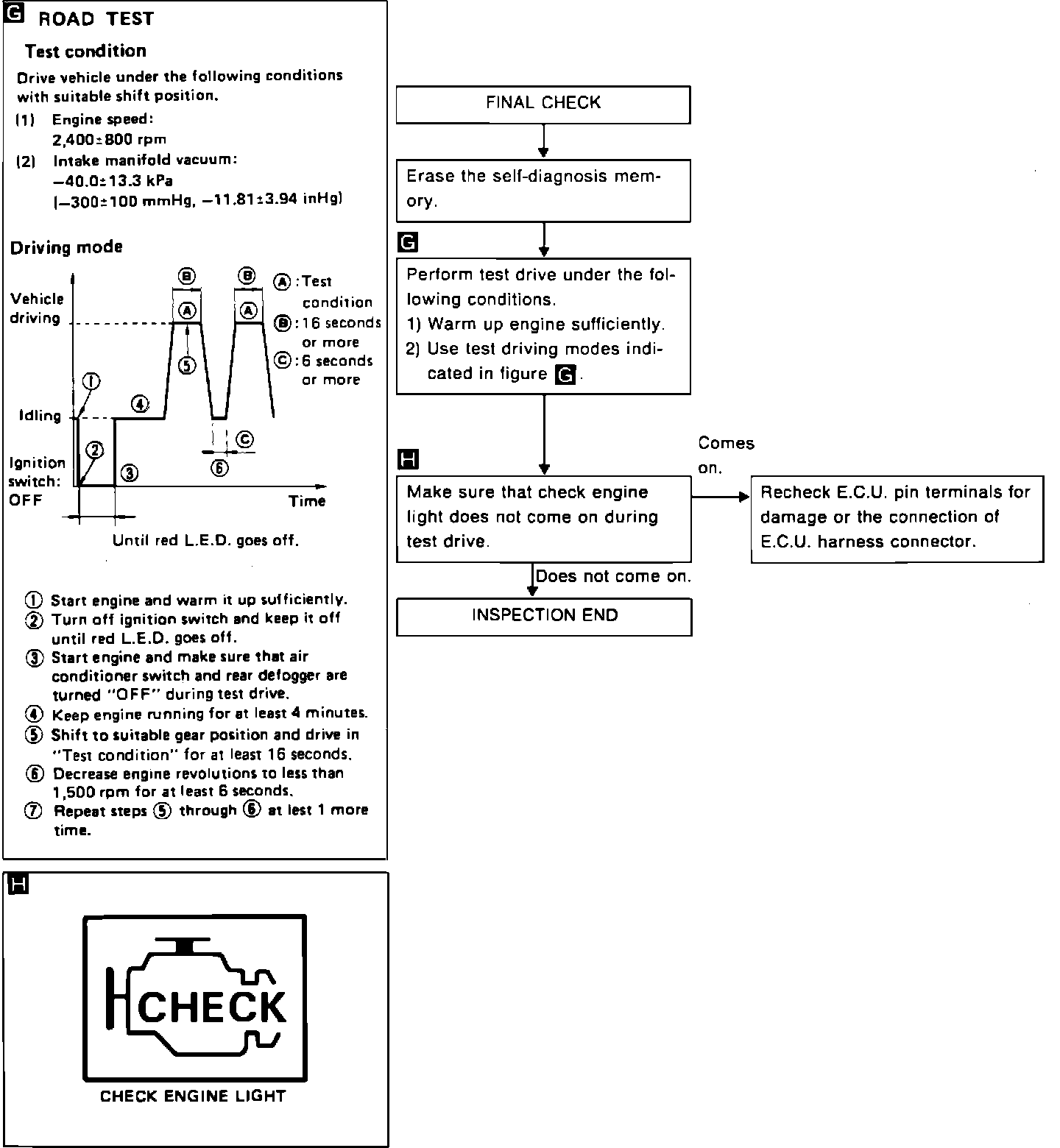

Final Check:

FINAL CHECK IMAGE
