DTC 21

The ECU did not detect the ignition primary signal during starting or running.

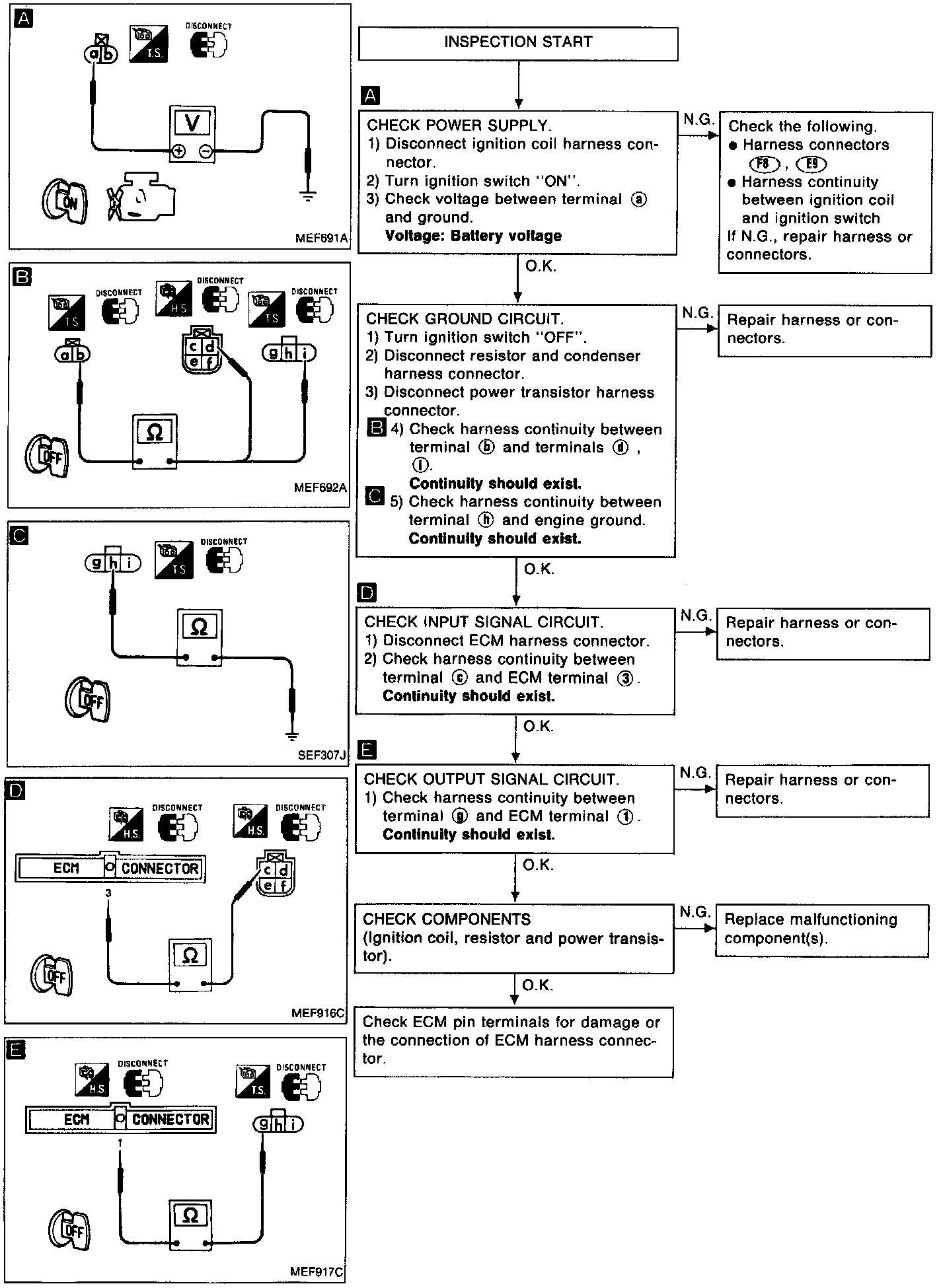

Code 21 - Ignition Signal Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

Circuit Diagram:

CIRCUIT DIAGRAM IMAGE

ELECTRICAL CONNECTOR IMAGES

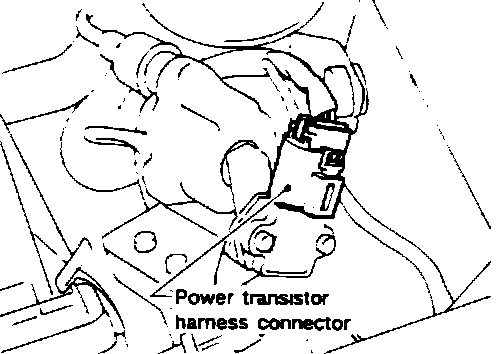

Connector Location:

POWER TRANSISTOR

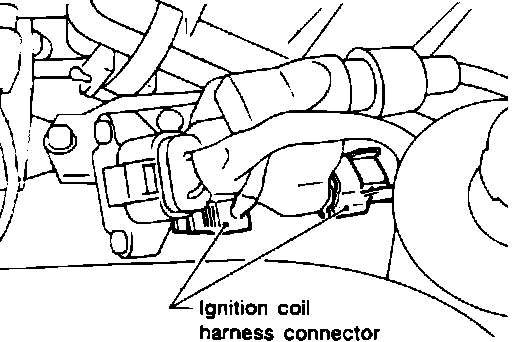

Connector Location:

IGNITION COIL CONNECTOR

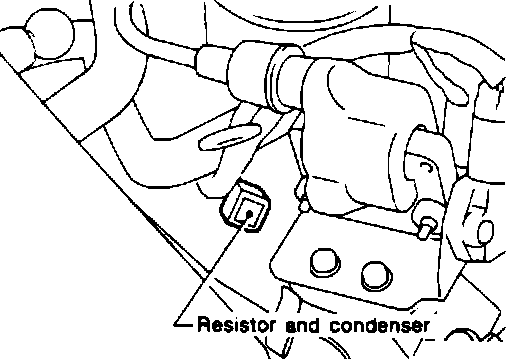

Connector Location:

RESISTOR AND CONDENSER
