DTC 14

The ECU detected an open circuit.

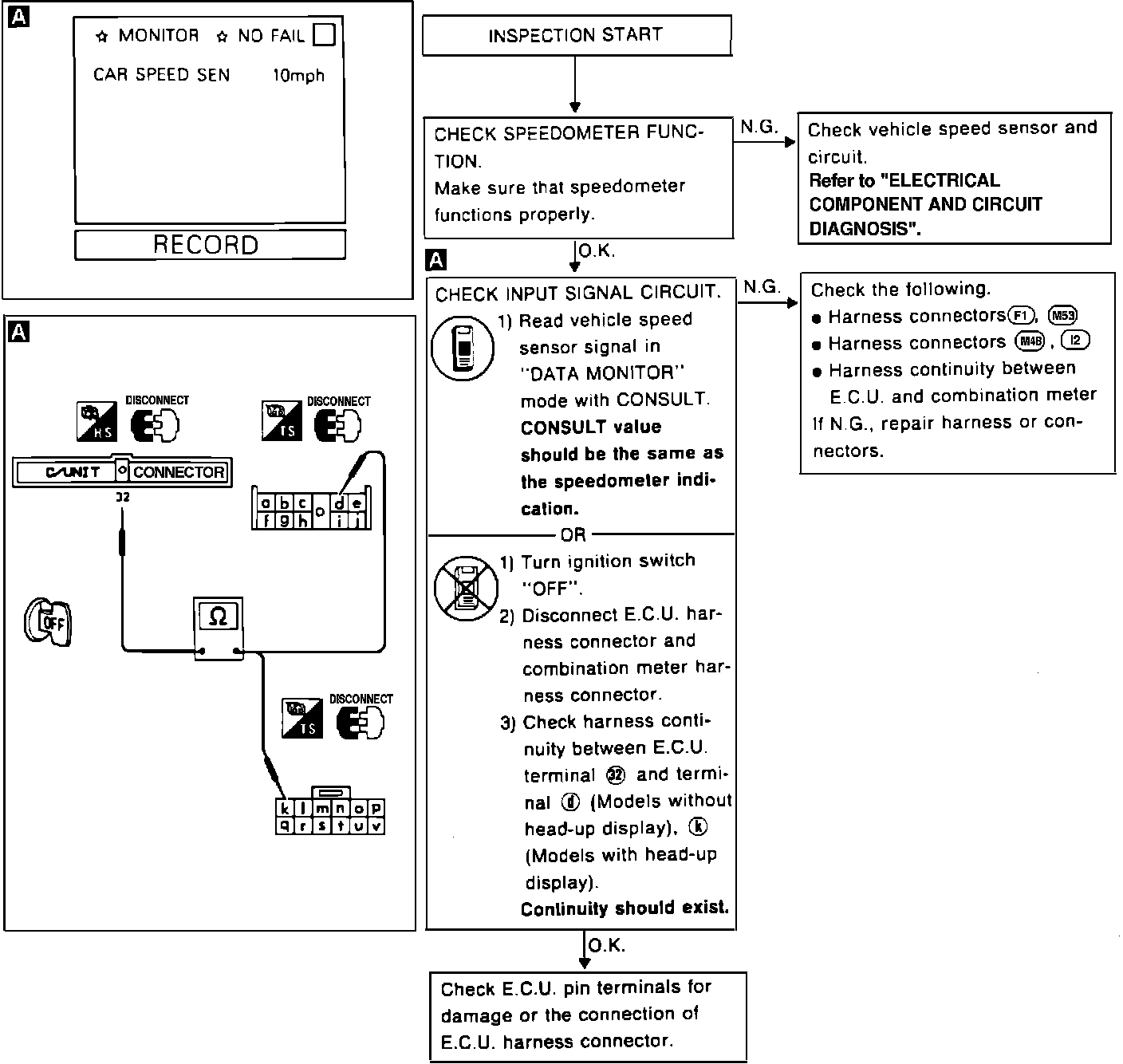

Code 14 - Vehicle Speed Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

Circuit Diagram:

CIRCUIT DIAGRAM IMAGE

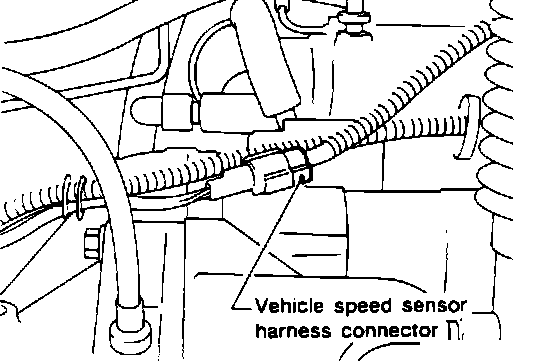

Connector Location:

ELECTRICAL CONNECTORS IMAGE

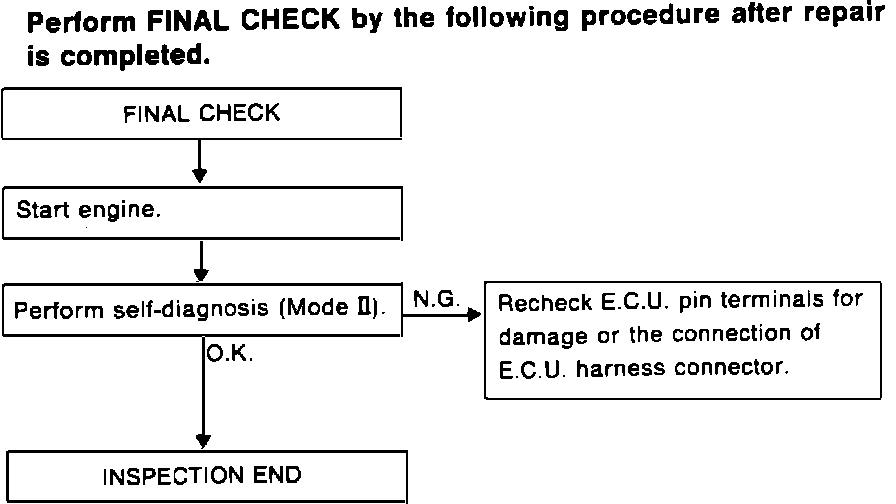

Final Check:

FINAL CHECK IMAGE
