DTC 11

The ECU sensed that the 1° or 180° signal was not received for the first few seconds during starting or was erratic during engine operation.

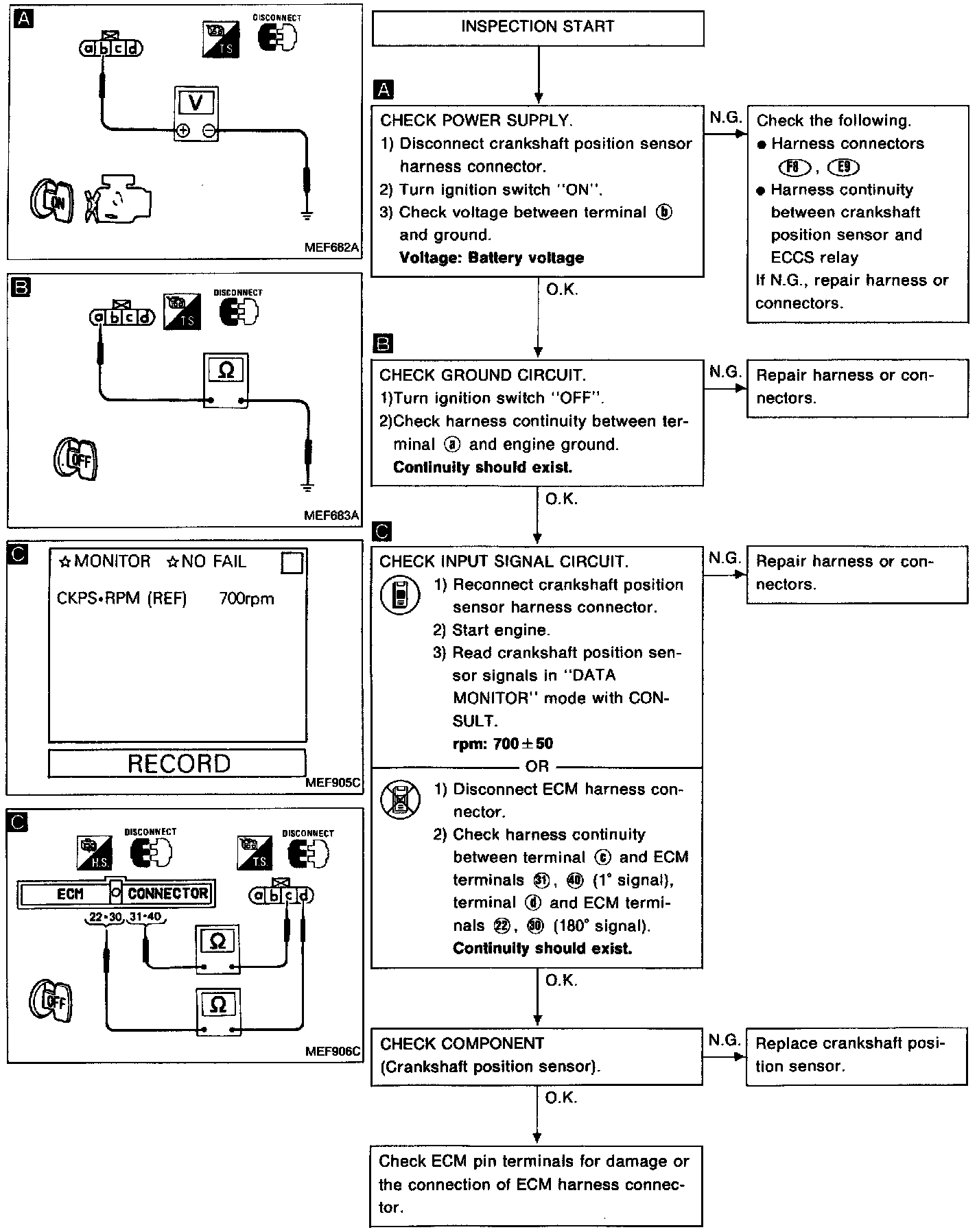

Code 11 - Crank Angle Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

Camshaft Position Sensor:

CIRCUIT DIAGRAM IMAGE

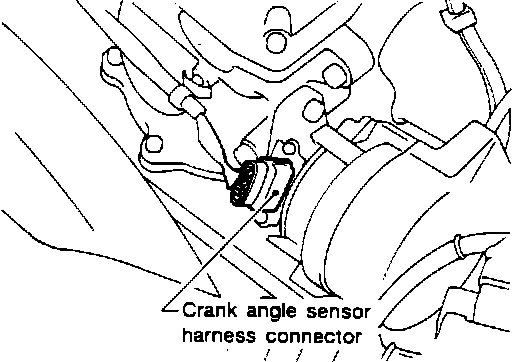

Connector Location:

ELECTRICAL CONNECTORS IMAGE

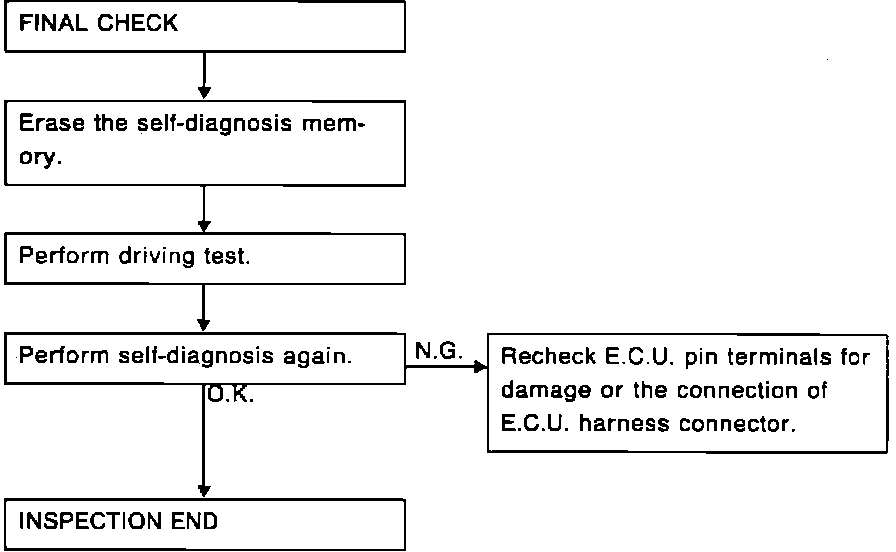

Final Check:

FINAL CHECK IMAGE
