Diagnostic Test Procedure 1

Fig. 74 Test 1: Pedal Vibration & Noise (Part 1 Of 2):




PART 1 OF 2

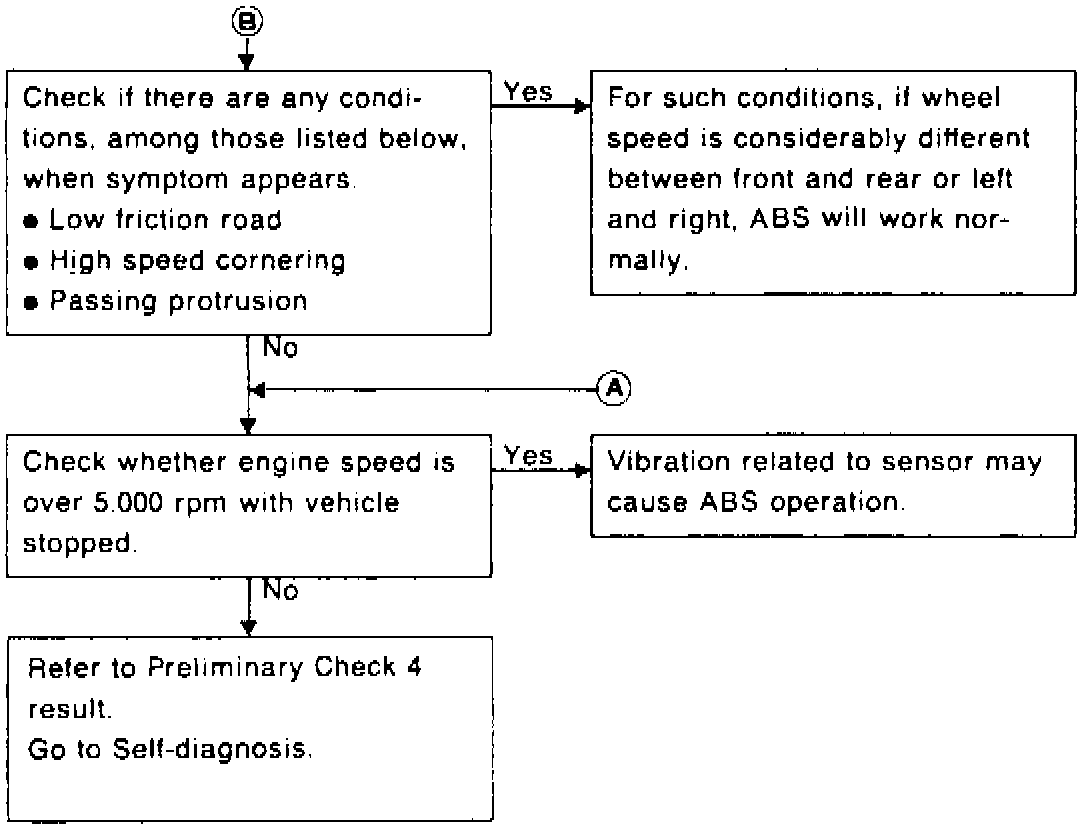

Fig. 74 Test 1: Pedal Vibration & Noise (Part 2 Of 2):




PART 2 OF 2
