M/T - Gear Raking Noise When Shifting

86nissan2

Reference: Date:
TECHNICAL BULLETIN TS86-144A October 13, 1986
Classification: Section: Models: 1985-1987 Maxima, 1986
TM86-017A Transmission
Stanza Wagon & 1987 Stanza

GEAR RAKING NOISE


This bulletin amends the original by adding additional models and including a baulk ring installation caution. Discard the original bulletin.


APPLIED MODELS: 1985-1987 Maxima, 1986 Stanza Wagon and 1987 Stanza equipped with manual transmission

AFFECTED VEHICLES

MODEL TYPE YEAR AFFECTED VEHICLES

MAXIMA SEDAN 1985-1986 All with M/T
1987 M/T model built before JN1HU11S()HT-228608

STANZA 2WD 1986 M/T model built before JN1HM05S()GX-032325
WAGON 4WD 1986 All built before JN8HM05Y()GX-009569

STANZA SEDAN 1987 M/T model built before JN1HT21S()HT-011593
HATCH 1987 M/T model built before JN8HT23S()HT-002353

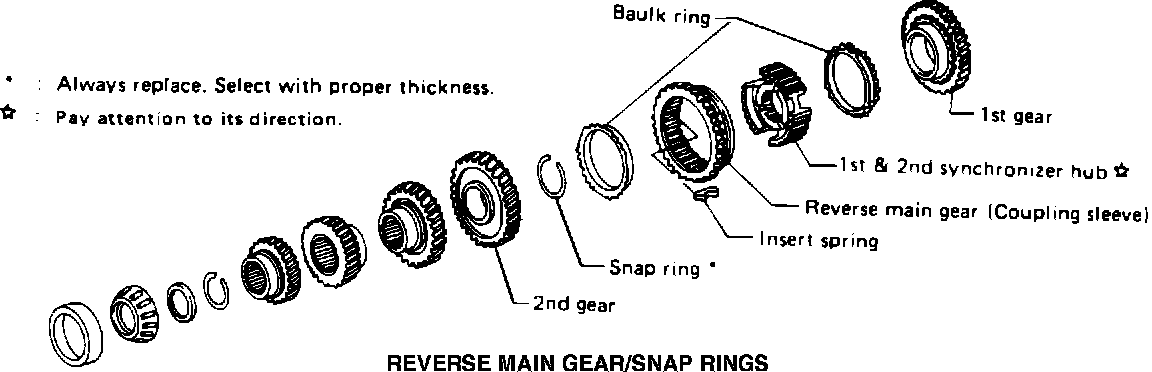

REVERSE MAIN GEAR/SNAP RINGS:

SERVICE INFORMATION

Some of the Affected Vehicles above may exhibit a raking noise when shifting from 1st to 2nd, 3rd to 2nd and 2nd to 1st. To reduce this noise, new 1st and 2nd baulk rings, 1st and 2nd synchronizer hub, and reverse main gear (coupling sleeve) are available.
PARTS INFORMATION


PART NUMBER
PART DESCRIPTION NEW FORMER

1st Baulk Ring 32607-38E00 32607-V5051
2nd Baulk Ring 32607-38E10 32607-V5051
1st-2nd Synchronizer Hub 32601-38E00 32601-03E01
Reverse Main Gear (coupling Sleeve) 32245-38E00 32245-03E04


Parts Interchangeability

Yes, only as a set.


SERVICE PROCEDLIRE

Refer to the appropriate Service Manual for disassembly and assembly procedures. During assembly, make sure to measure the clearance between baulk rings and gears. If the clearance is smaller than the standard, the gears should be replaced.

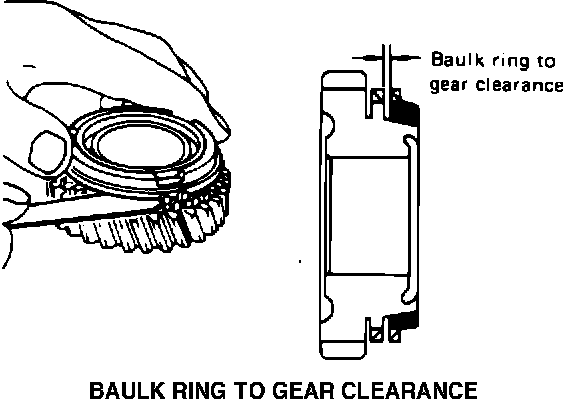

BAULK RING TO GEAR CLEARANCE:

Baulk ring to gear clearance:

Standard 1.0 - 1.35 mm (0.0394 - 0.0531 in)

BAULK RING SPECIFICATIONS:

CAUTION: Make sure the 1st and 2nd baulk rings are installed in the correct position. The 1st baulk ring has 9 teeth between inserts (27 total) and the 2nd baulk ring has 11 teeth between inserts (33 total). Do not reverse them.
