Axle Shaft, Conventional Fixed/Floating

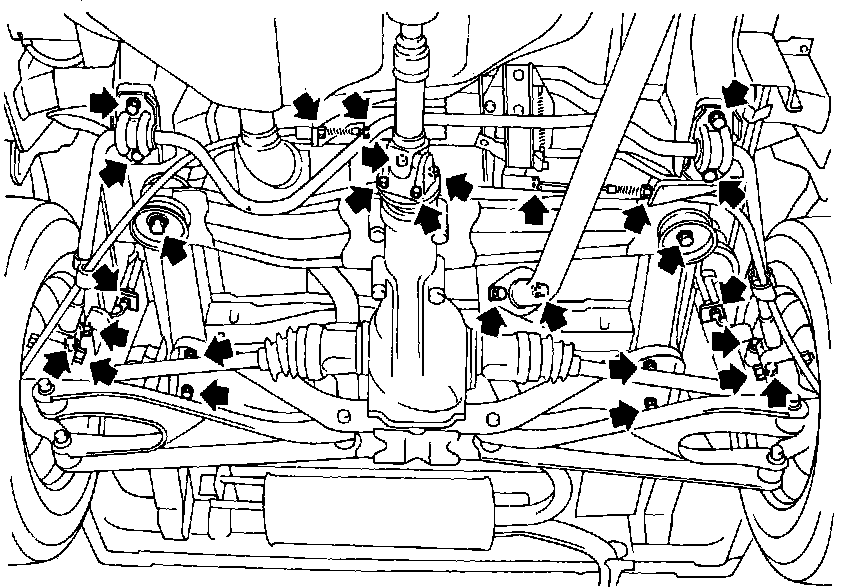

Fig. 11 Rear axle replacement. 4WD Stanza Wagon:

4WD STANZA WAGON

Refer to Fig. 11 for replacement, noting the following:
1. Disconnect brake hydraulic line and parking brake cable.
2. Remove radius rod.
3. Remove rear exhaust pipe attaching bolts and nuts.
4. Remove propeller shaft.
