Low Clutch

Low Clutch:

LOW CLUTCH




- Use Tool to remove the clutch spring snap ring.

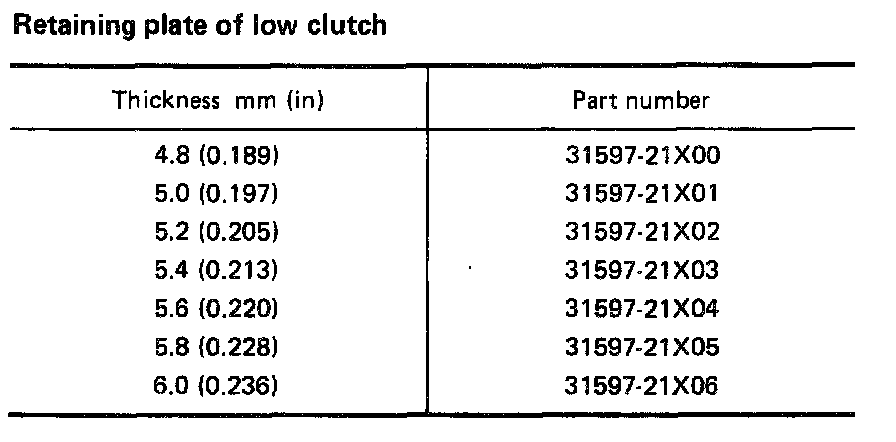

Retaining Plate Of Low Clutch:

Service procedures for low clutch are essentially the same as those for high clutch, with the following exception:

Specified clearance between retaining plate and snap ring:
Standard 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit 1.6 mm (0.063 in)




After assembly, check the operation of clutch.
