Low & Reverse Brake

Low And Reverse Brake:

LOW & REVERSE BRAKE

INSPECTION
- Examine low and reverse brake for damaged clutch drive plate facing and worn snap ring.
- Check drive plate facing for wear or damage; if necessary, rep ace.

Drive plate thickness:
Standard 2.0 mm (0.079 in)
Allowable limit 1.8 mm (0.071 in)

Specified clearance between retaining plate and snap ring:
Standard 2.2 - 2.6 mm (0.087 - 0.102 in)
Allowable limit 3.6 mm (0.142 in)

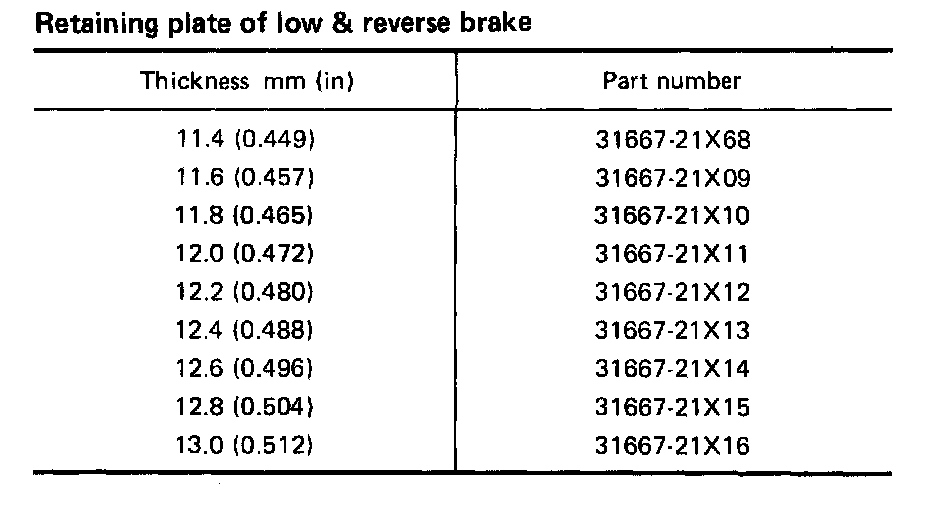

Retaining Plate Of Low And Reverse Brake:

Retaining Plate of Low And Reverse Brake
