Diff. Side Oil Seal Replacement

1. Remove drive shaft assembly.

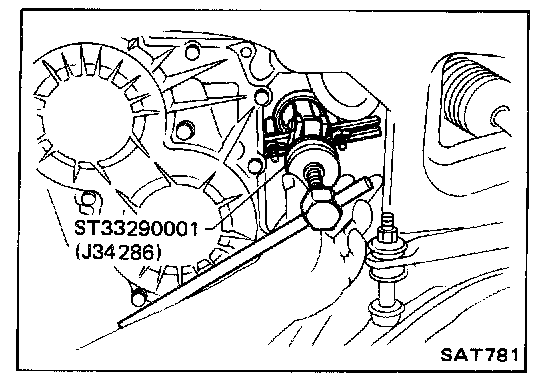

2. Remove oil seal.




3. Apply coat of A.T.F. to oil seal surface, then drive new oil seal into place.
4. Install drive shaft assembly.
Be extremely careful not to scratch oil seal when inserting drive shaft.
