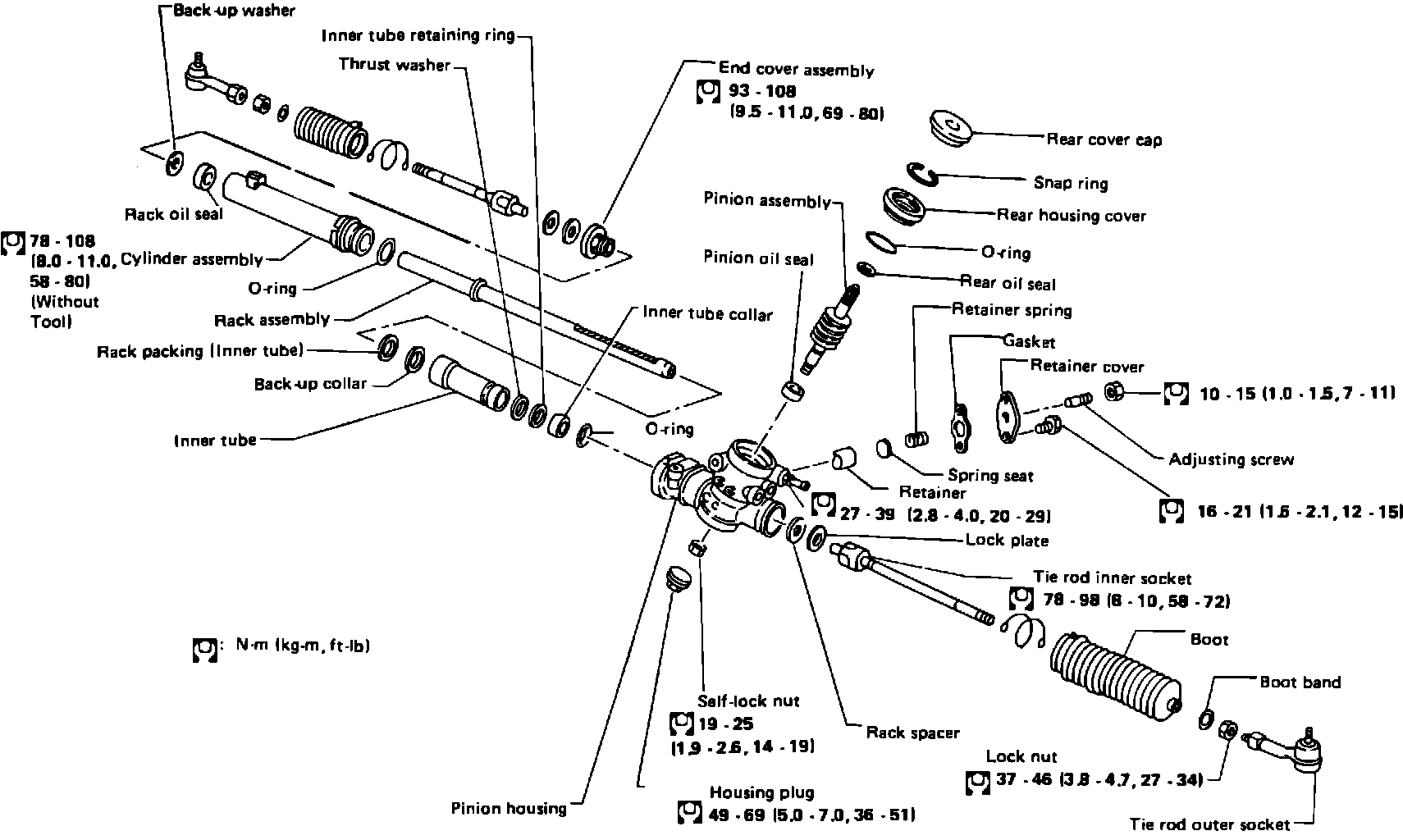

Exploded View of the Steering Gear Assembly




For your convenience, an exploded view of the steering gear assembly is provided below. It contains proper part names and tightening torques.
