Inspection and Adjustment

Gear End Play:

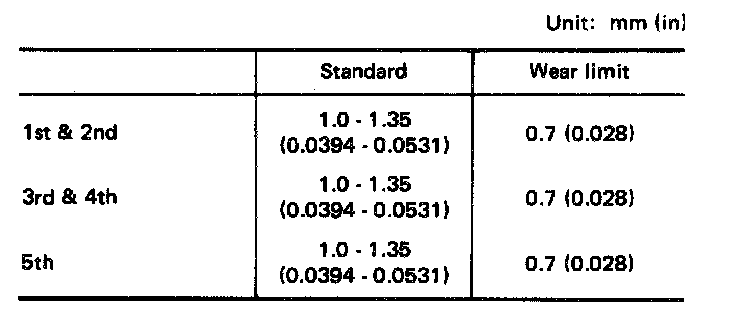

Clearance Between Baulk Ring And Gear:

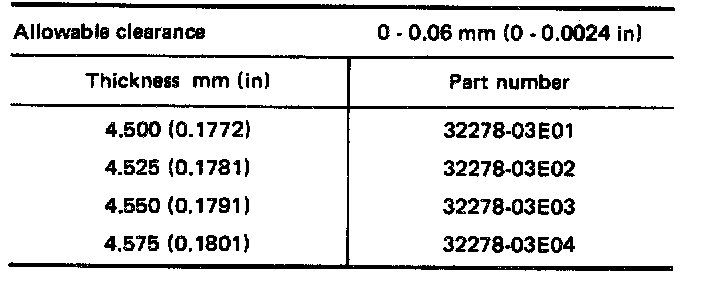

Available Snap Ring 3rd & 4th Synchronizer Hub (At Input Shaft):

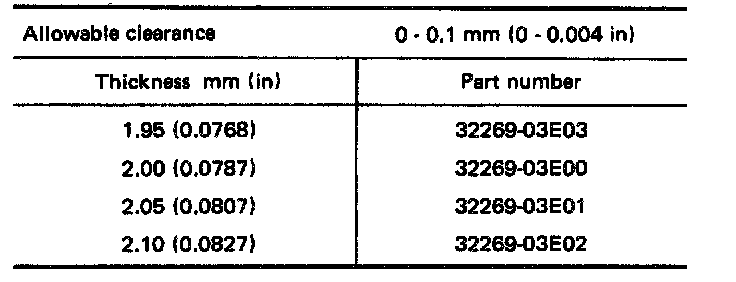

Available Snap Ring 1st & 2nd Synchronizer Hub:

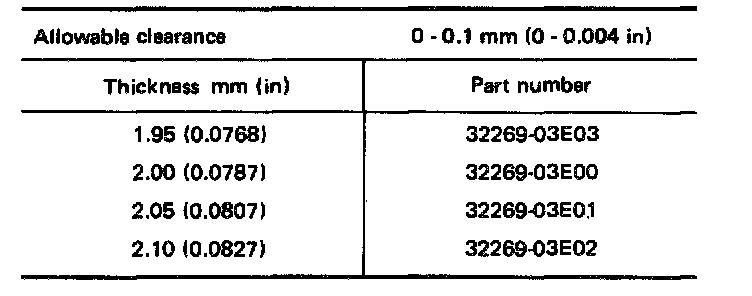

Available Snap Ring 5th Main Gear:

Available Washer - Input Shaft Thrust Washer:

Available Washer - Differential Side Gear Thrust Washer:

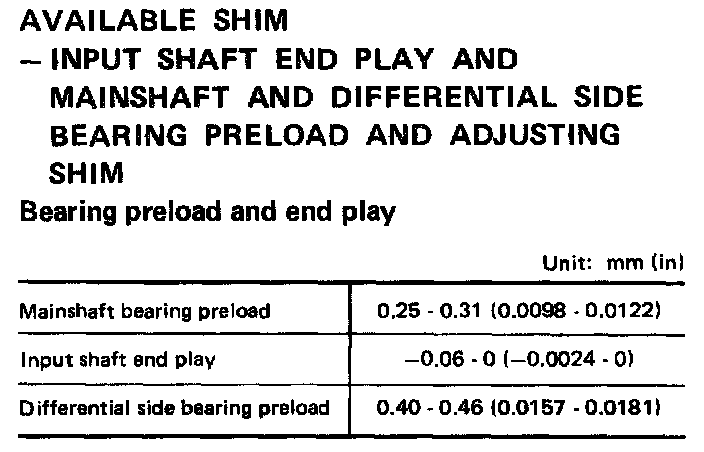

Bearing Preload And End Play:

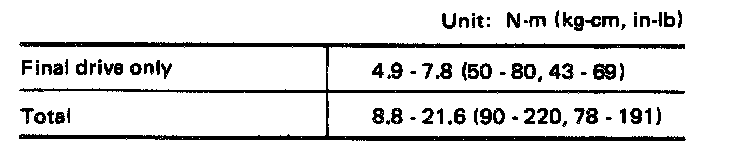

Turning Torque (New Bearing):

Mainshaft Bearing Adjusting Shim:

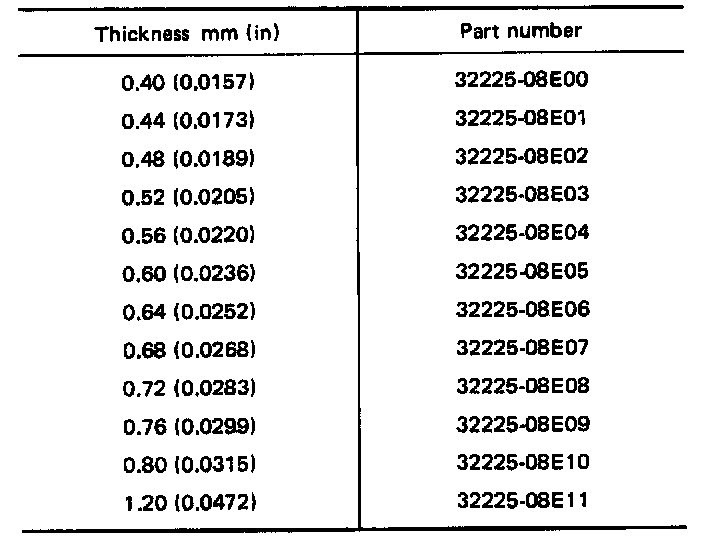

Input Shaft Bearing Adjusting Shim:

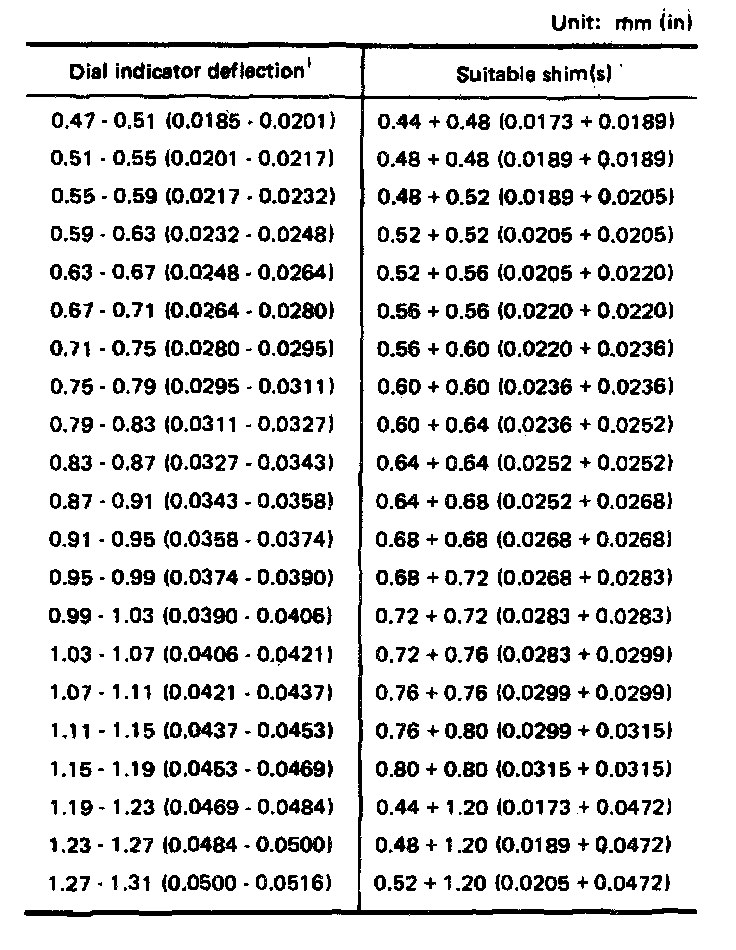

Table For Selecting Input Shaft Bearing Adjusting Shim:

Differential Side Bearing Adjusting Shim:

Table For Selecting Differential Side Bearing Adjusting Shim(s):
