Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
>>

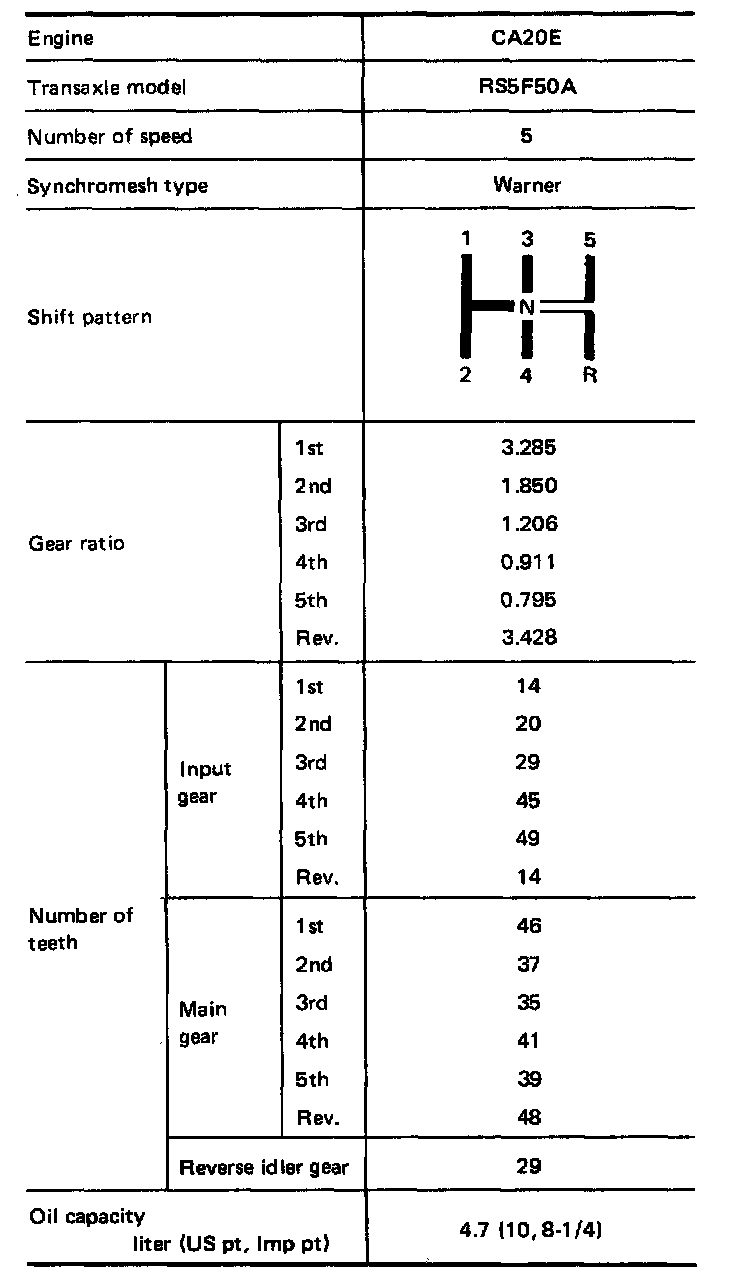

General Specifications
General Specifications
TRANSAXLE:
FINAL GEAR:
