Engine Control Module

Fig. 305a Input/Output signal inspection chart.:

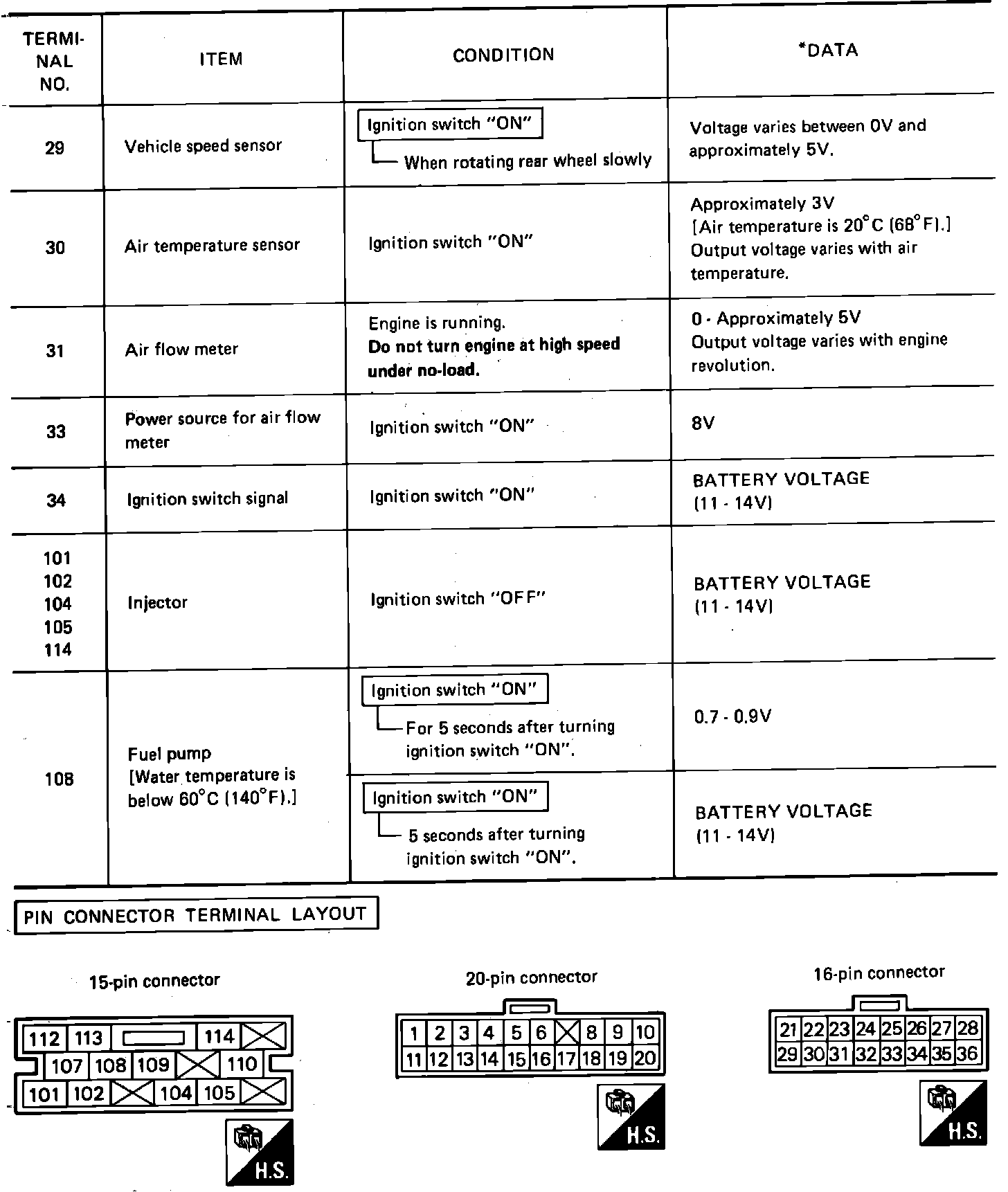

Fig. 305b Input/Output signal inspection chart.:

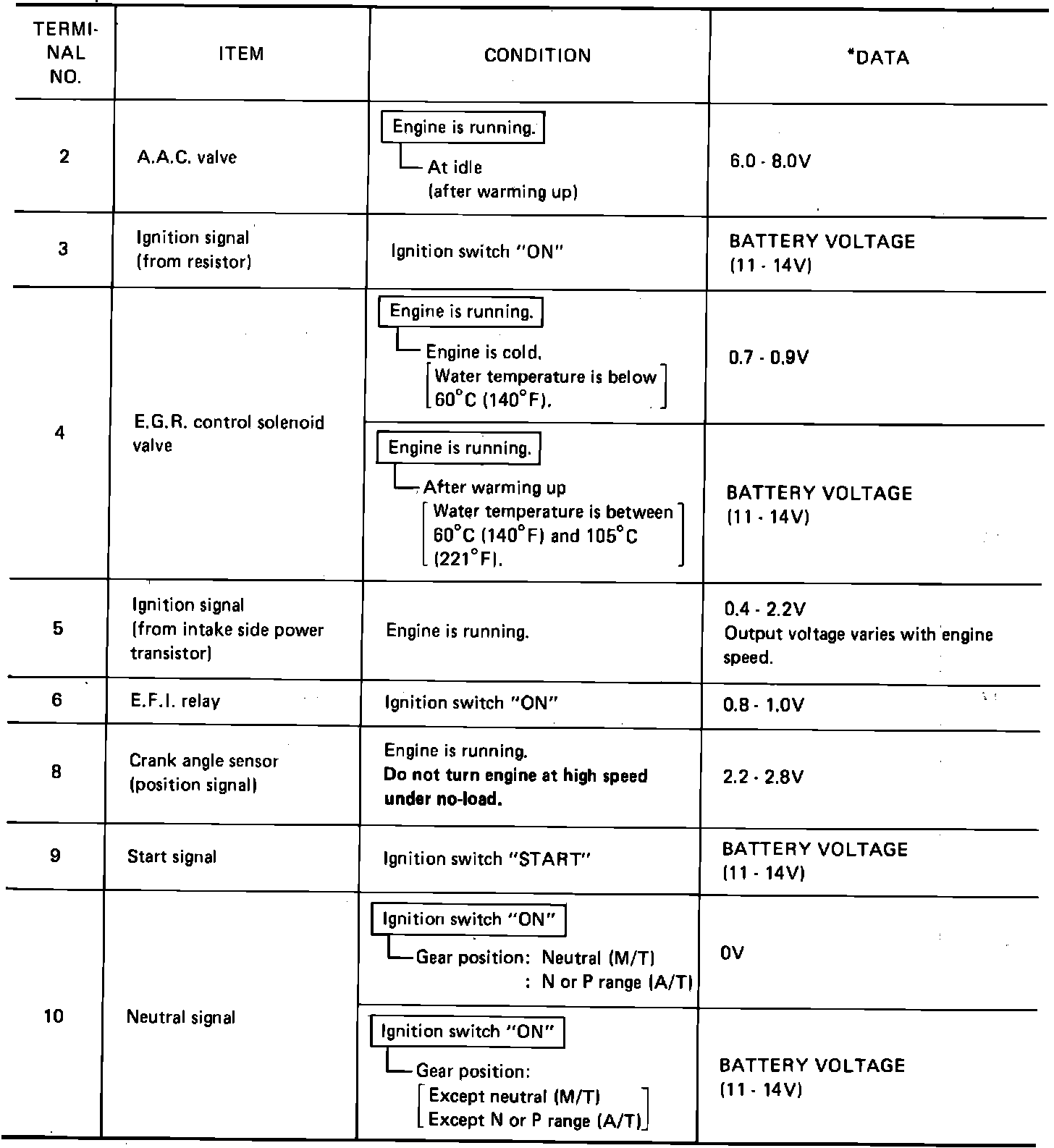

Fig. 305c Input/Output signal inspection chart.:

Fig. 305d Input/Output signal inspection chart.:
