Fan Switch - Exc. Wagon

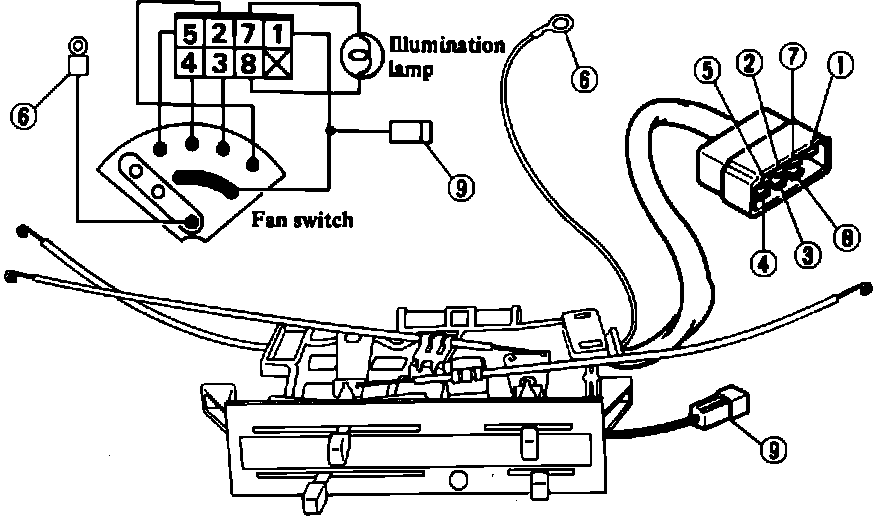

Fig. 62 Testing fan switch, w/lever controls.:

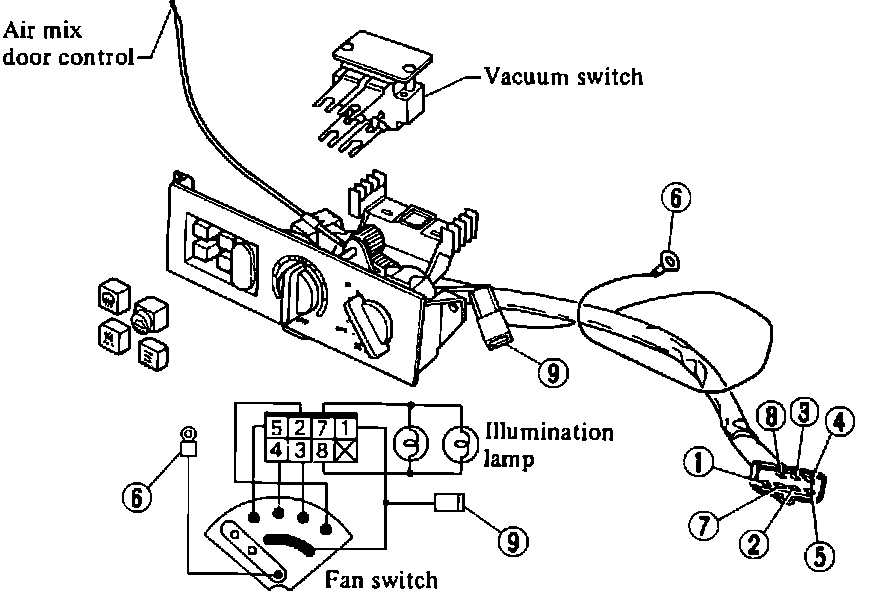

Fig. 63 Testing fan switch, w/push button controls.:

1. Disconnect wiring harness connector to switch and check continuity with ohmmeter.
2. Meter should indicate continuity as shown in Figs. 62 & 63.
