Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Air Conditioning Switch >> Technical Service Bulletins >> A/C Economy Mode Switch - Discontinued >> A/C Electrical Circuit Wiring Diagram

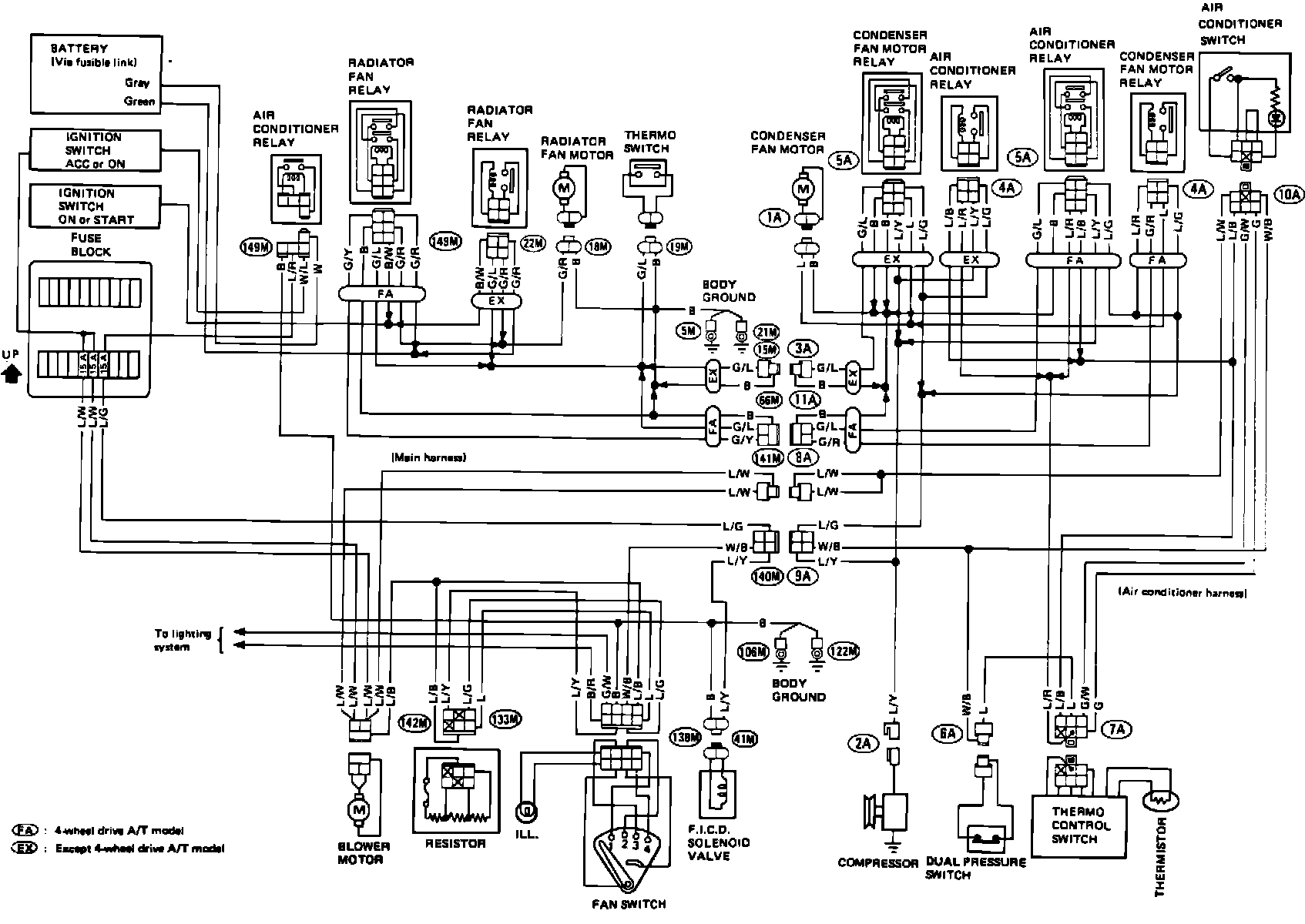

A/C Electrical Circuit Wiring Diagram
