Radiator Cooling Fan Temperature Sensor / Switch: Service and Repair

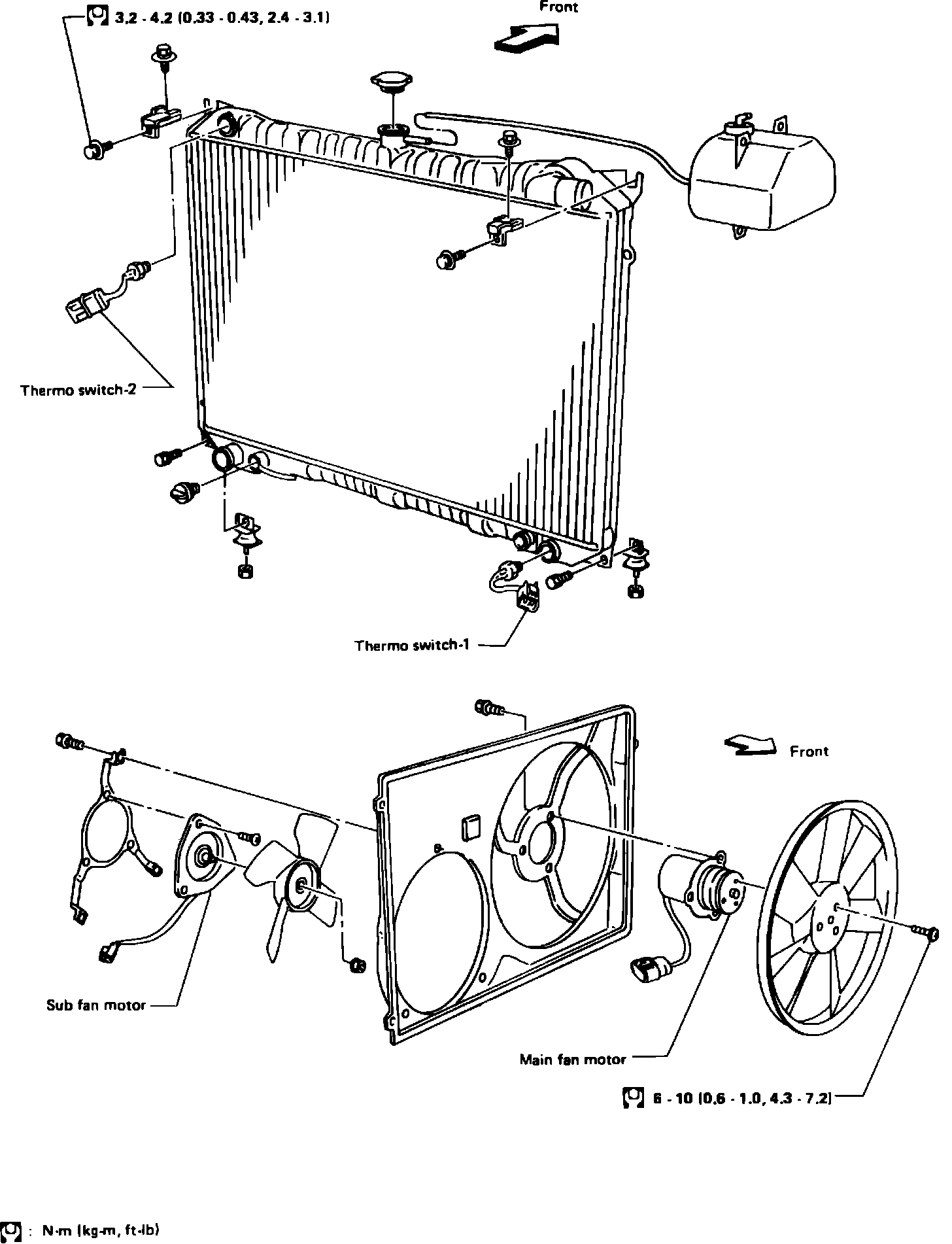

Fig. 8 Electric engine cooling fan assembly. 1987-88 Stanza:

Thermo sensor No. 1 is located in the radiator lower tank. Thermo sensor No. 2 is located in the radiator upper tank, Fig. 8.
1. Disconnect battery ground cable.
2. Drain cooling system into suitable container.
3. Disconnect thermo switch wiring, then remove switch.
4. Reverse procedure to install.
