Control Module HVAC: Locations

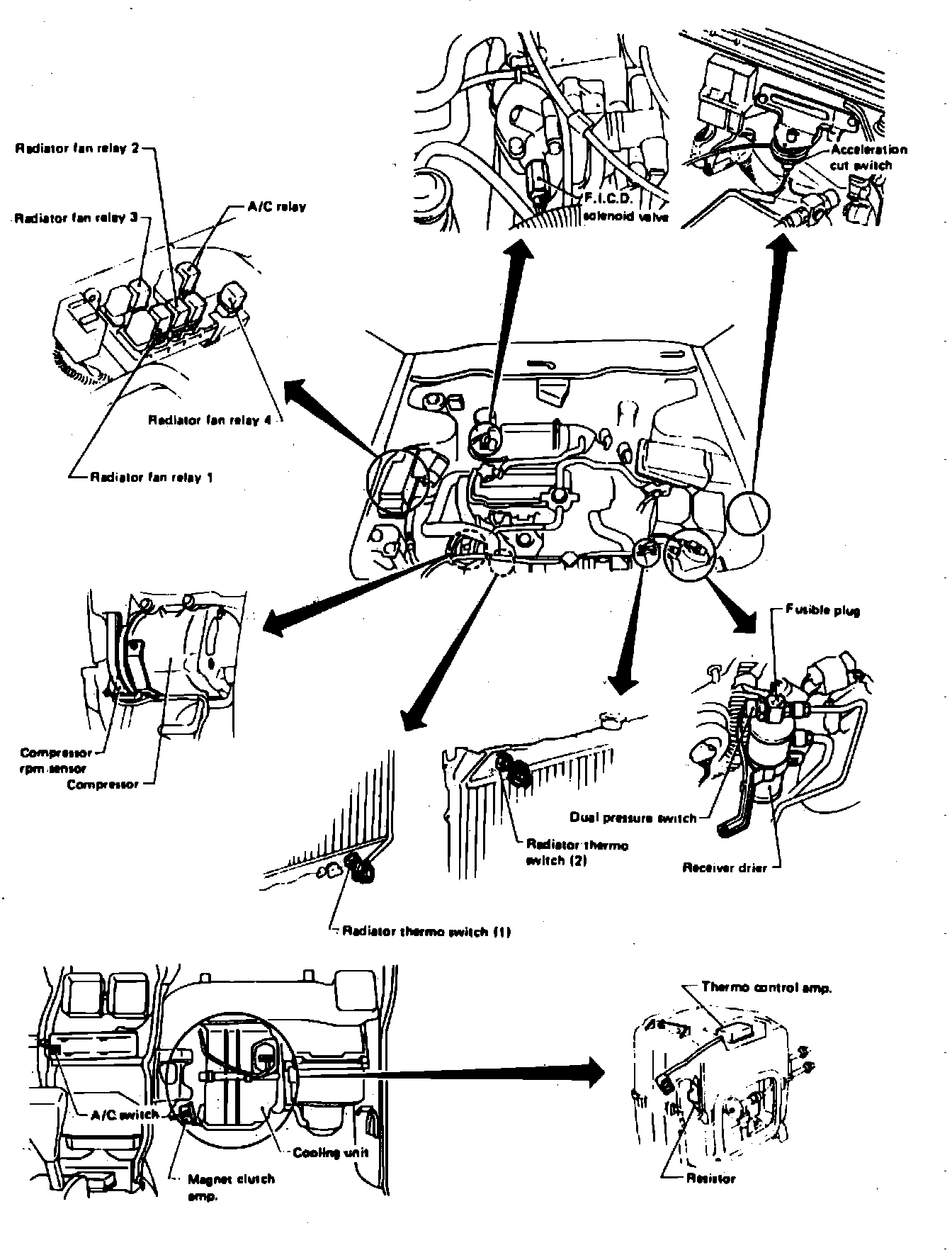

Air Conditioner System Components.:




Under RH I/P, Attached To Evaporator Housing

Applicable to: 1987 Stanza
