Description, Wagon

Fig. 117a Air Injecton Valve (AIV) Operation:

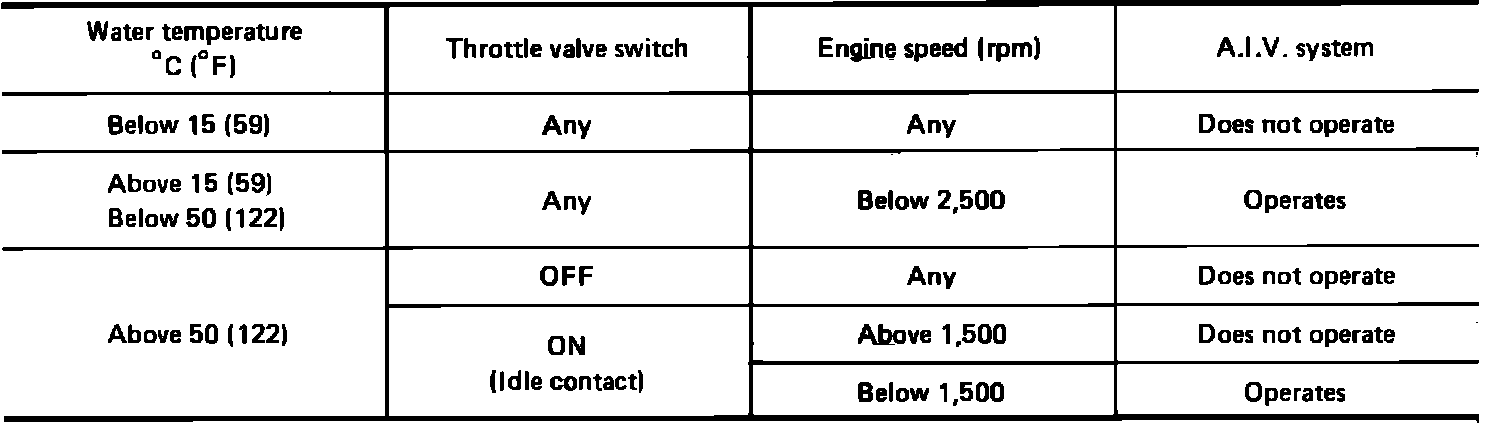

The air injection valve system delivers secondary air to the exhaust manifold, utilizing a vacuum caused by exhaust pulsation in the exhaust manifold. Specific operating conditions are outlined in Fig. 117.
