Description, Sedan

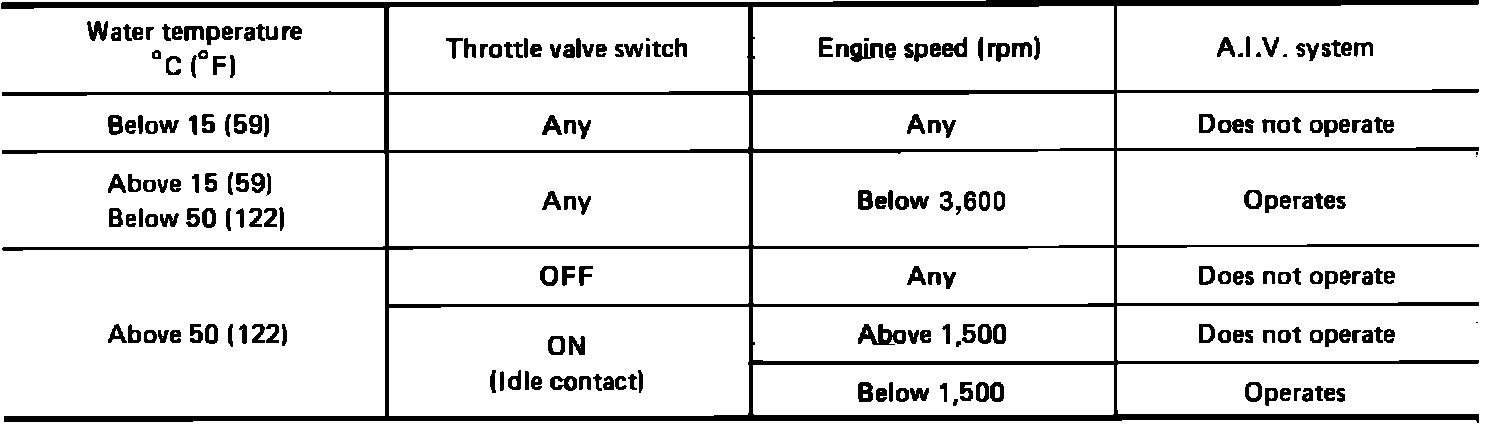

Fig. 117b Air Injecton Valve (AIV) Operation:

The air injection valve system delivers secondary air to the exhaust manifold, utilizing a vacuum caused by exhaust pulsation in the exhaust manifold. Specific operating conditions are outlined in Fig. 117.
