Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Fuel Not Accepted Smoothly, Hesitations

Fuel Not Accepted Smoothly, Hesitations

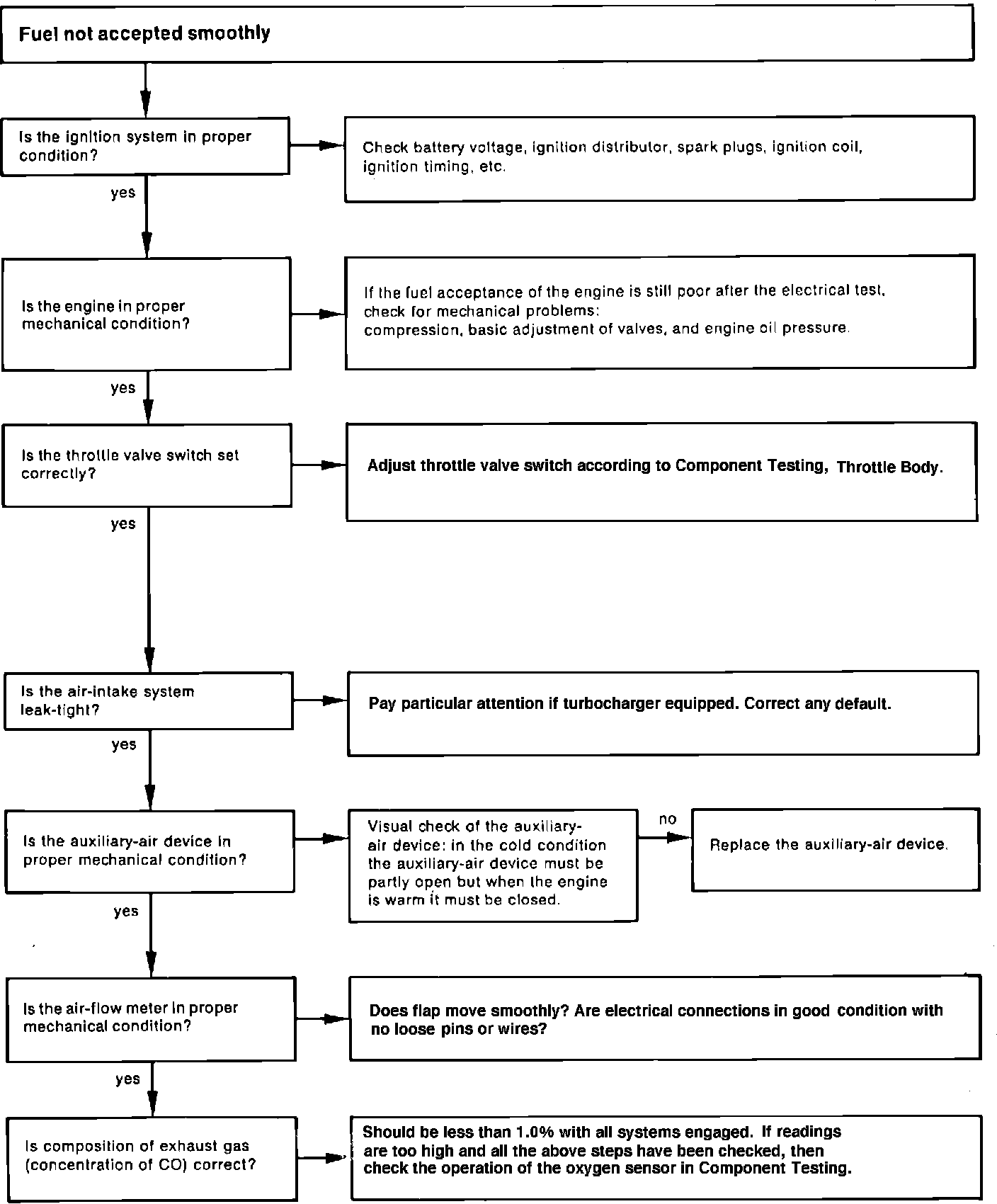

Fig. 4 Symptom troubleshooting:
