Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Misses At All Times

Engine Misses At All Times

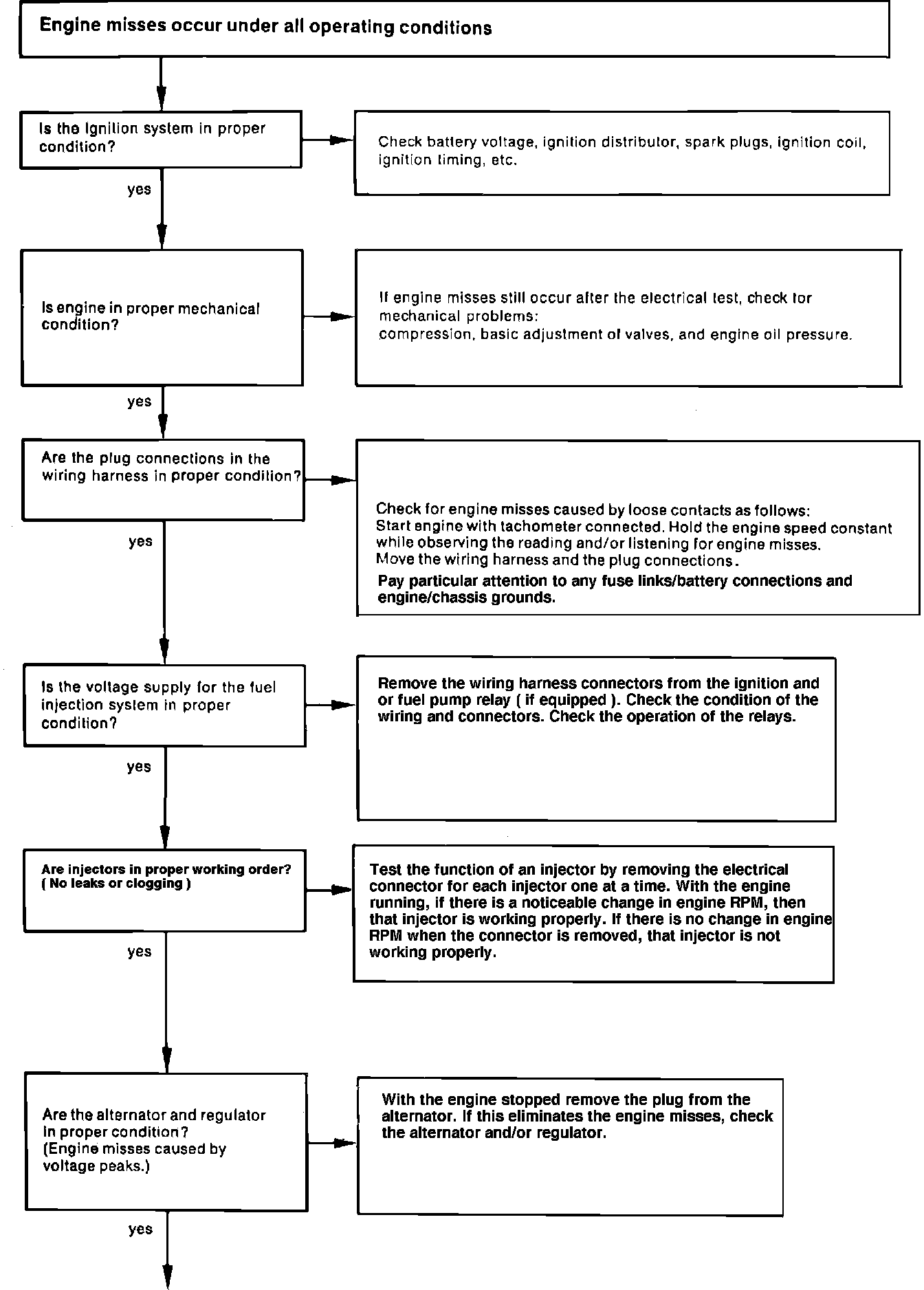

Fig. 3a Symptom troubleshooting:



Fig. 3b Symptom troubleshooting:
