Mode I and II (Mixture Ratio Feedback Control)

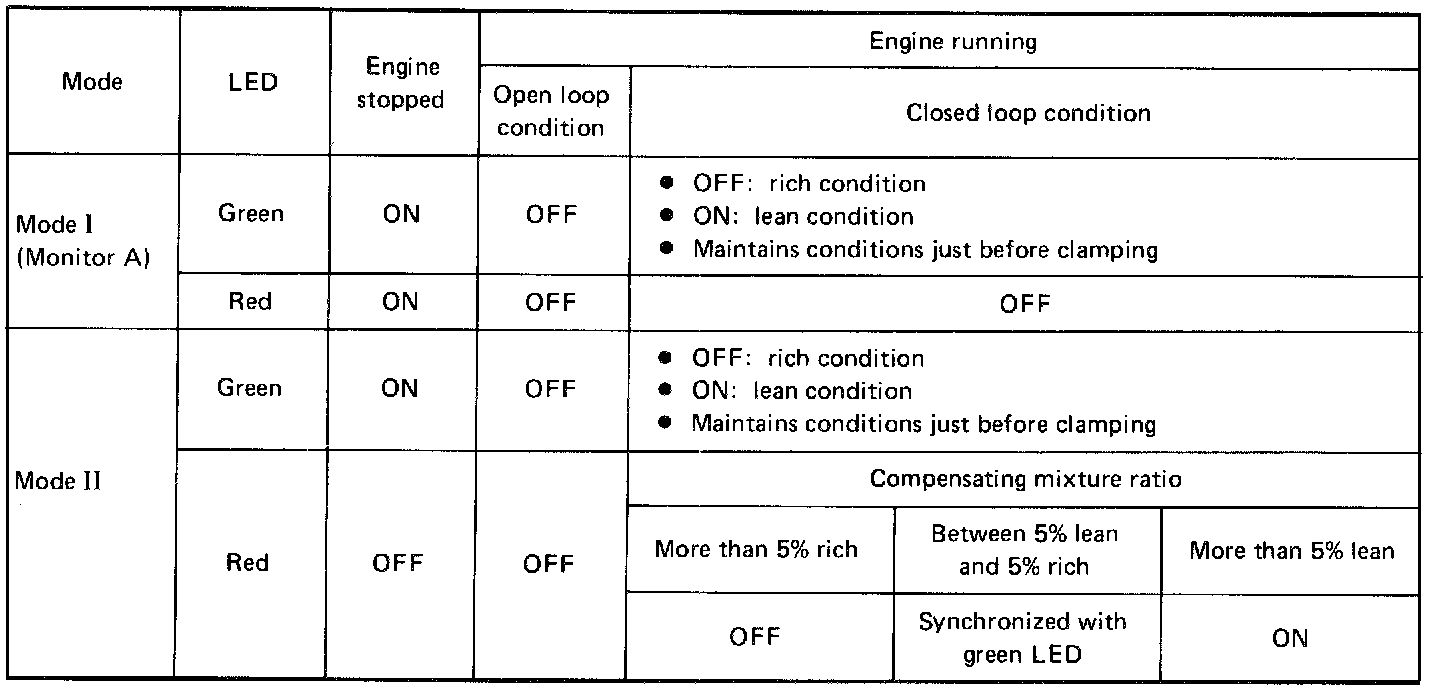

In these modes, the control unit provides the Air-fuel ratio monitor presentation and the Air-fuel ratio feedback coefficient monitor presentation.
