Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Vehicle Speed Sensor >> Sedan

Sedan

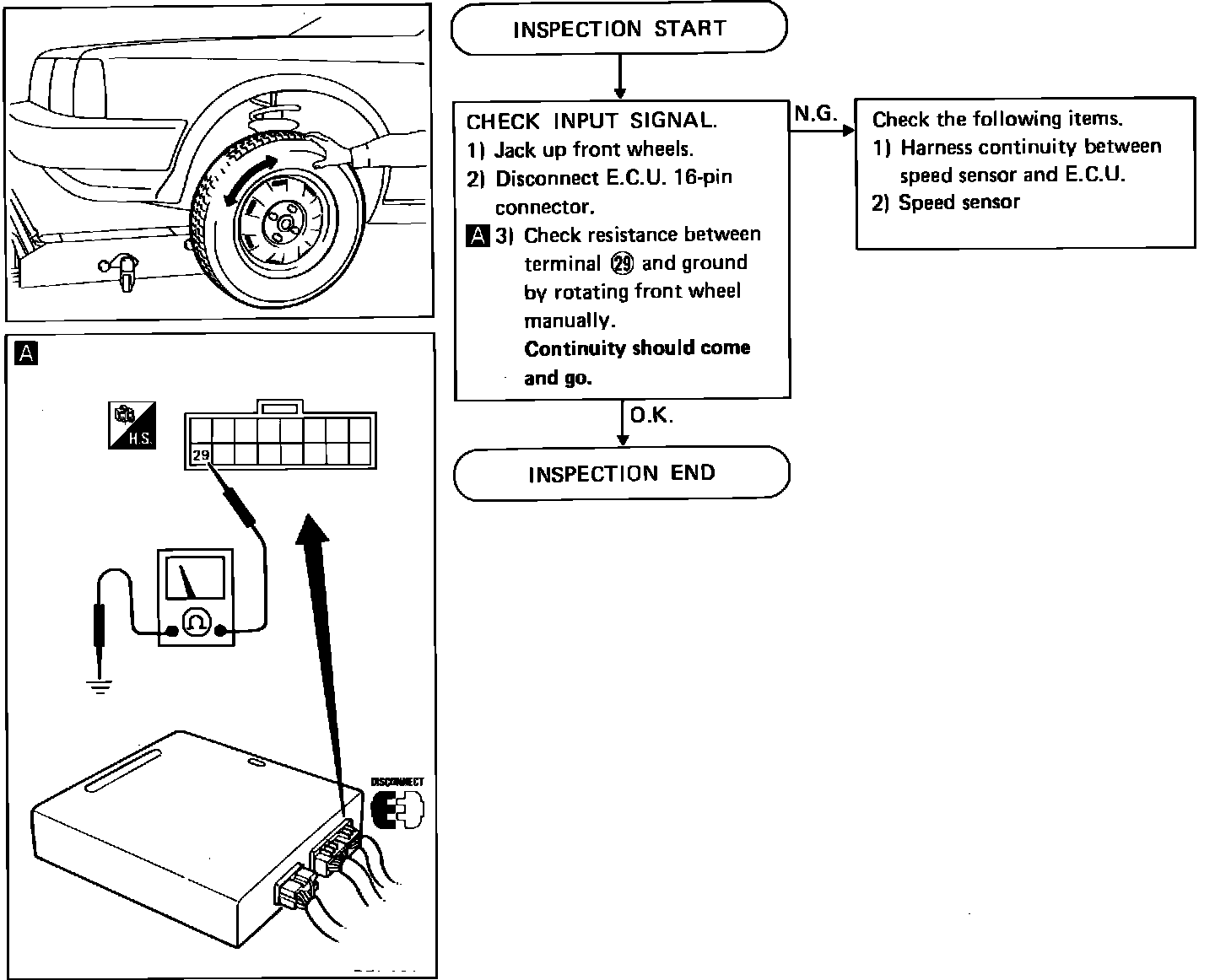

Fig. 284 Vehicle speed sensor switch ON/OFF diagnosis procedure:
