FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1987
>>
Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Throttle Valve Switch
Throttle Valve Switch

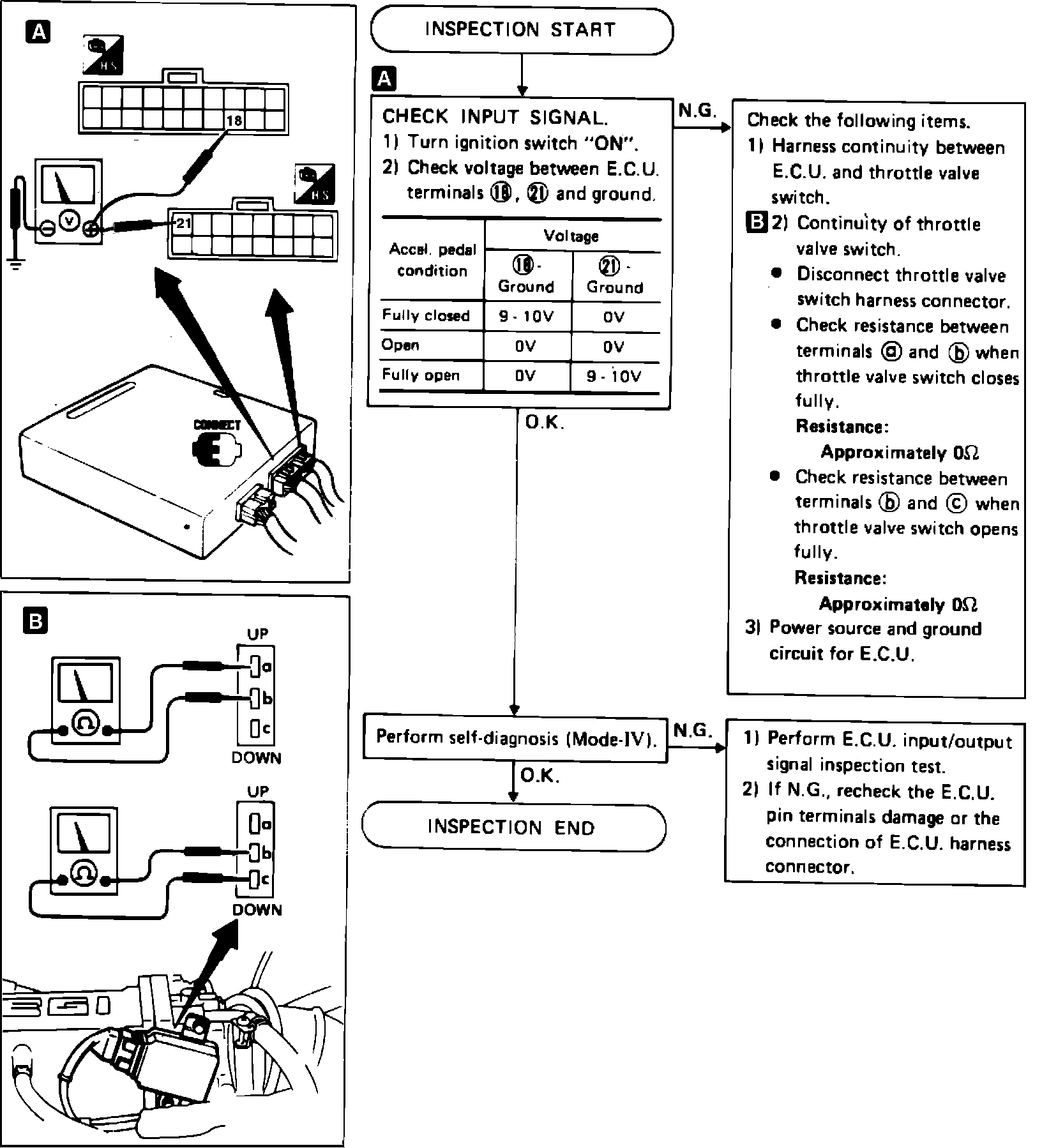

Fig. 282 Throttle valve switch ON/OFF diagnosis procedure.:
