Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Restart Relay (Sedan)

Restart Relay (Sedan)

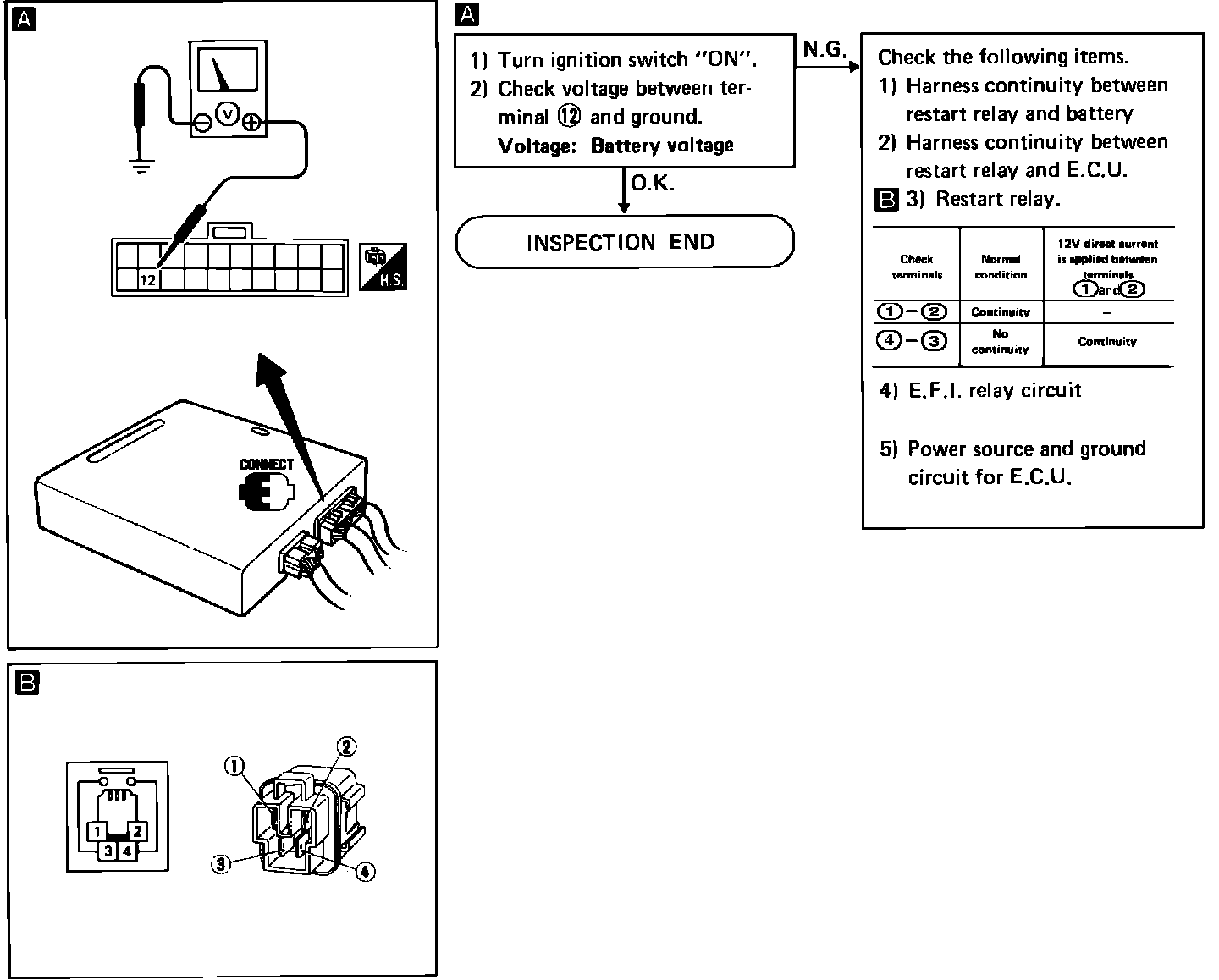

Fig. 370 Restart relay circuit diagnosis.:
