Fuel Cut Control (At No Load & High Engine Speed)

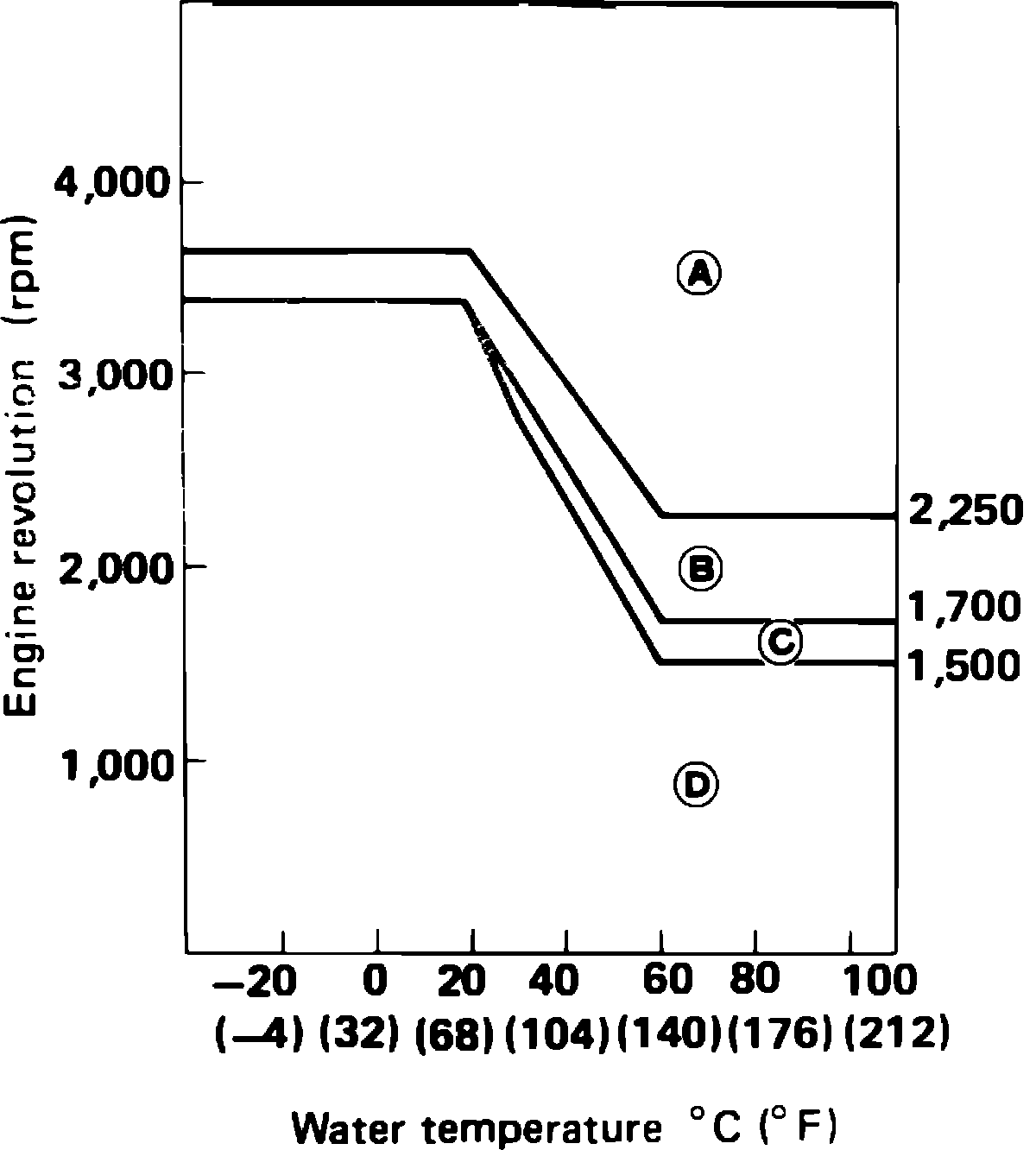

Fig. 32a Fuel cut operation chart.:

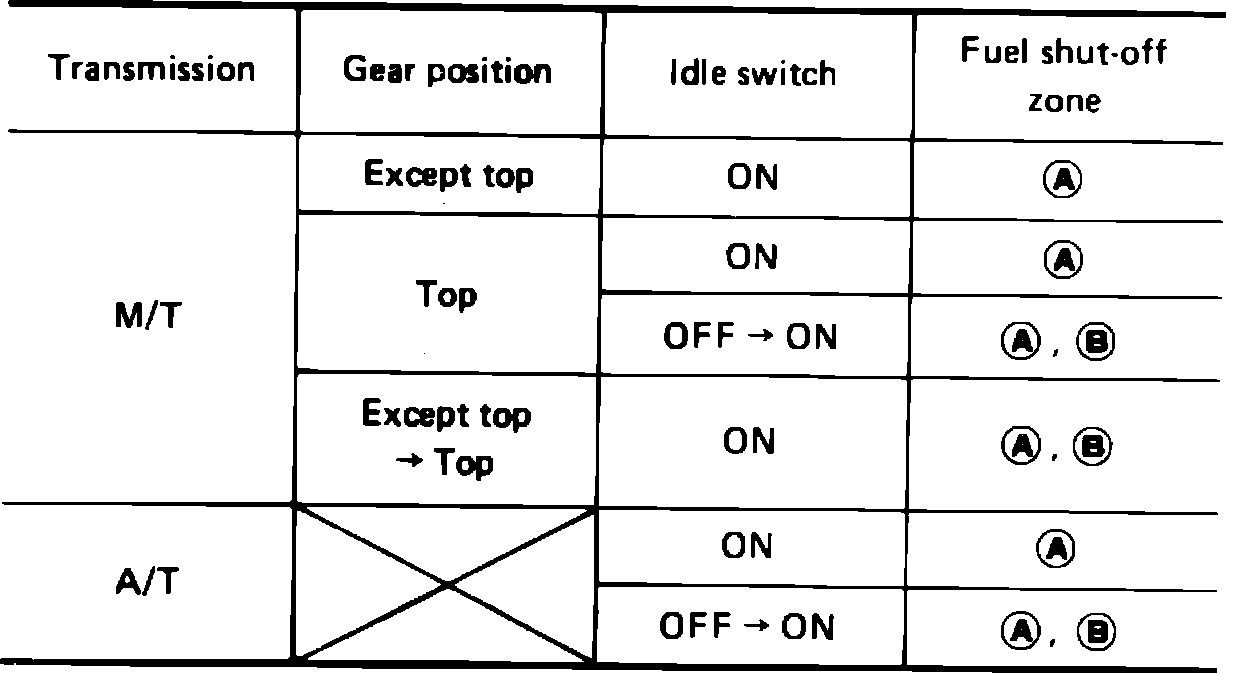

Fig. 32b Fuel cut operation chart.:

Fuel cut is accomplished during deceleration when the engine does not require fuel.
The fuel cut specifications for manual and automatic transmission equipped models are shown in Fig. 32.
