Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Clearance, License, Stop & Tail Lamp >> Wagon

Wagon

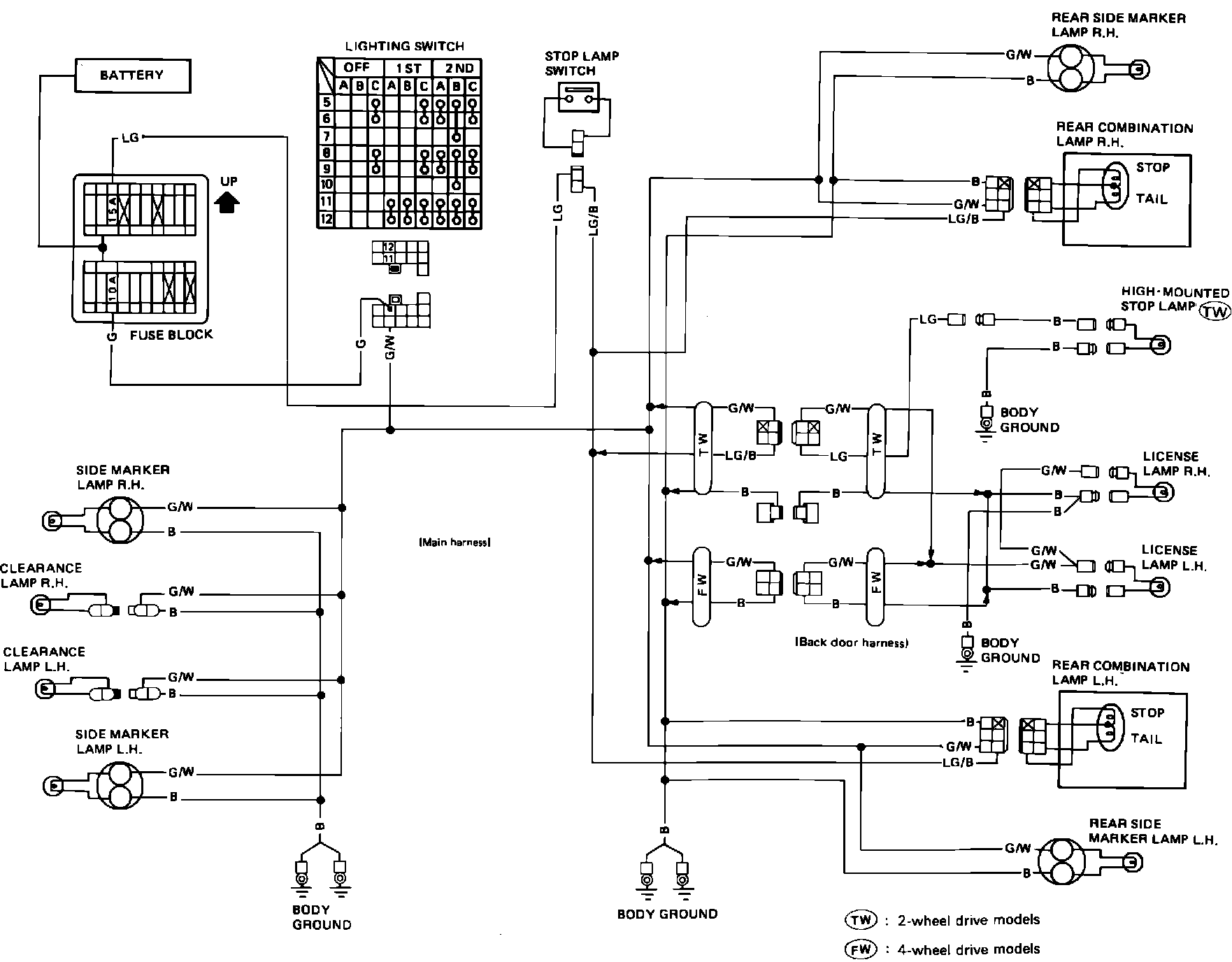

Fig. 151 Clearance, License, Side Marker, Stop & Tail Lamp Wiring Circuit:
