Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Instrument Illumination >> Exc. Wagon

Exc. Wagon

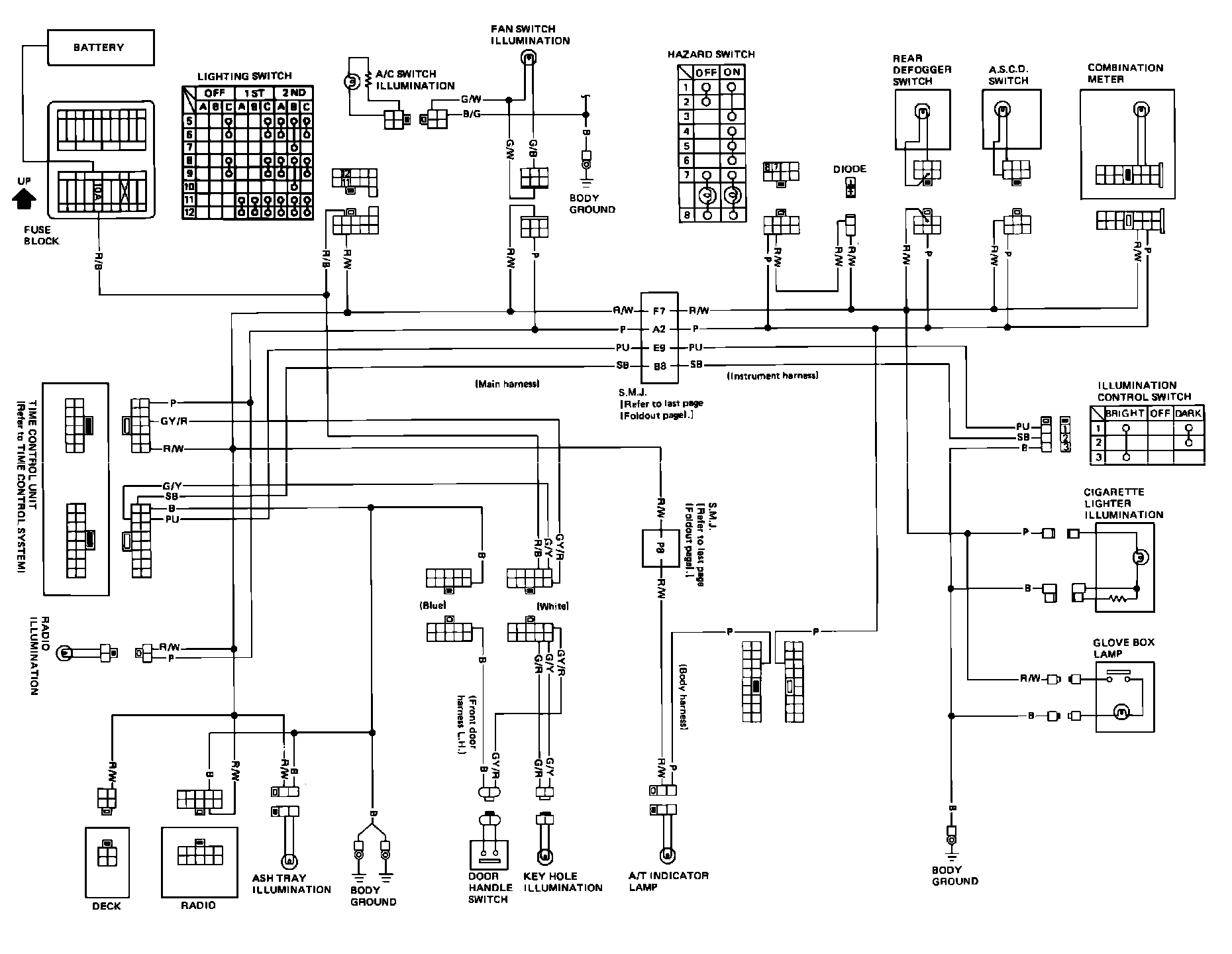

Fig. 126 Instrument Illumination Wiring Circuit:
