Heating System Troubleshooting - Manual Type

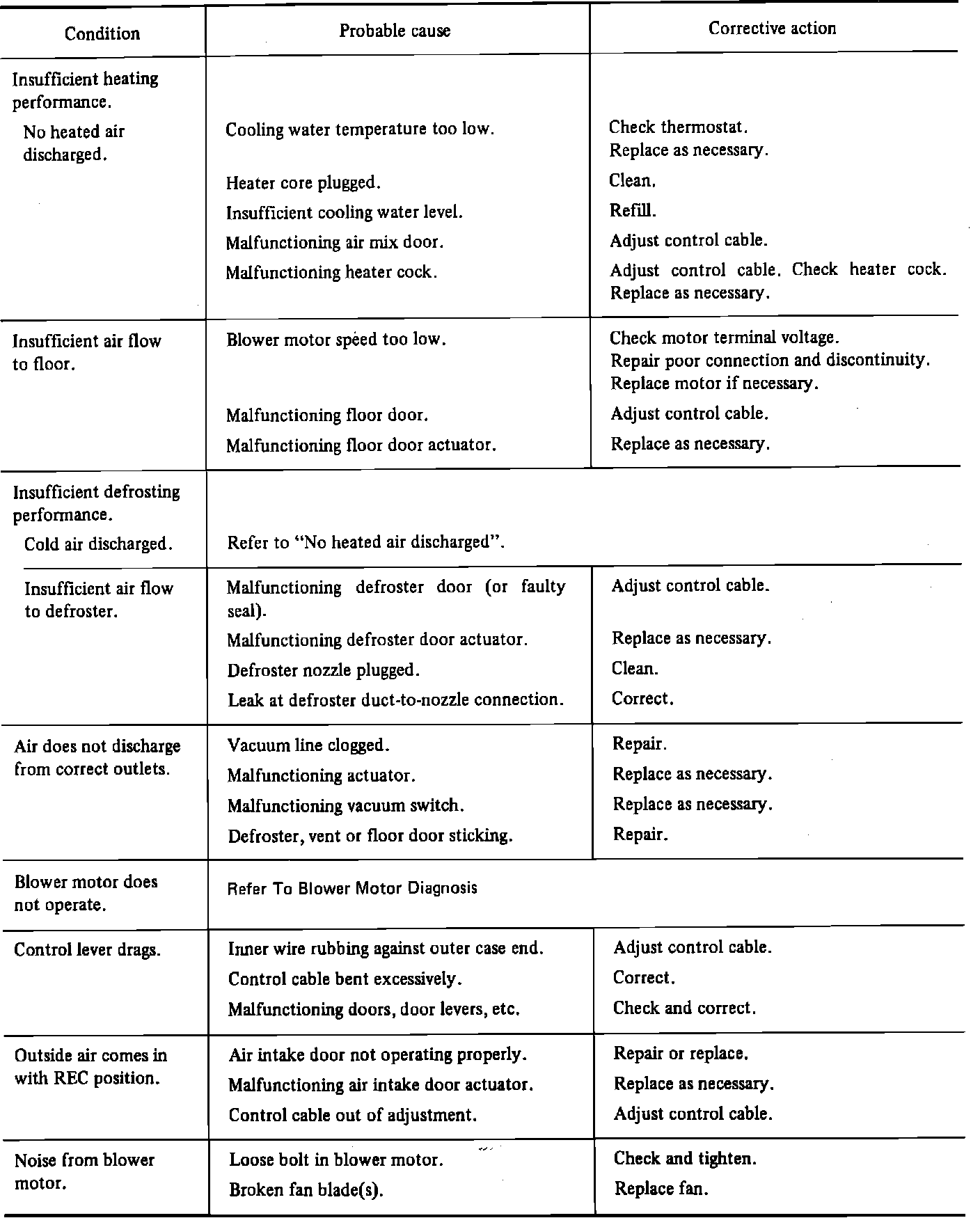

Fig. 3 Heater diagnosis.:





When diagnosing heater operation only, refer to Fig. 3
