Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Diagrams >> Electrical Diagrams >> Wagon

Wagon

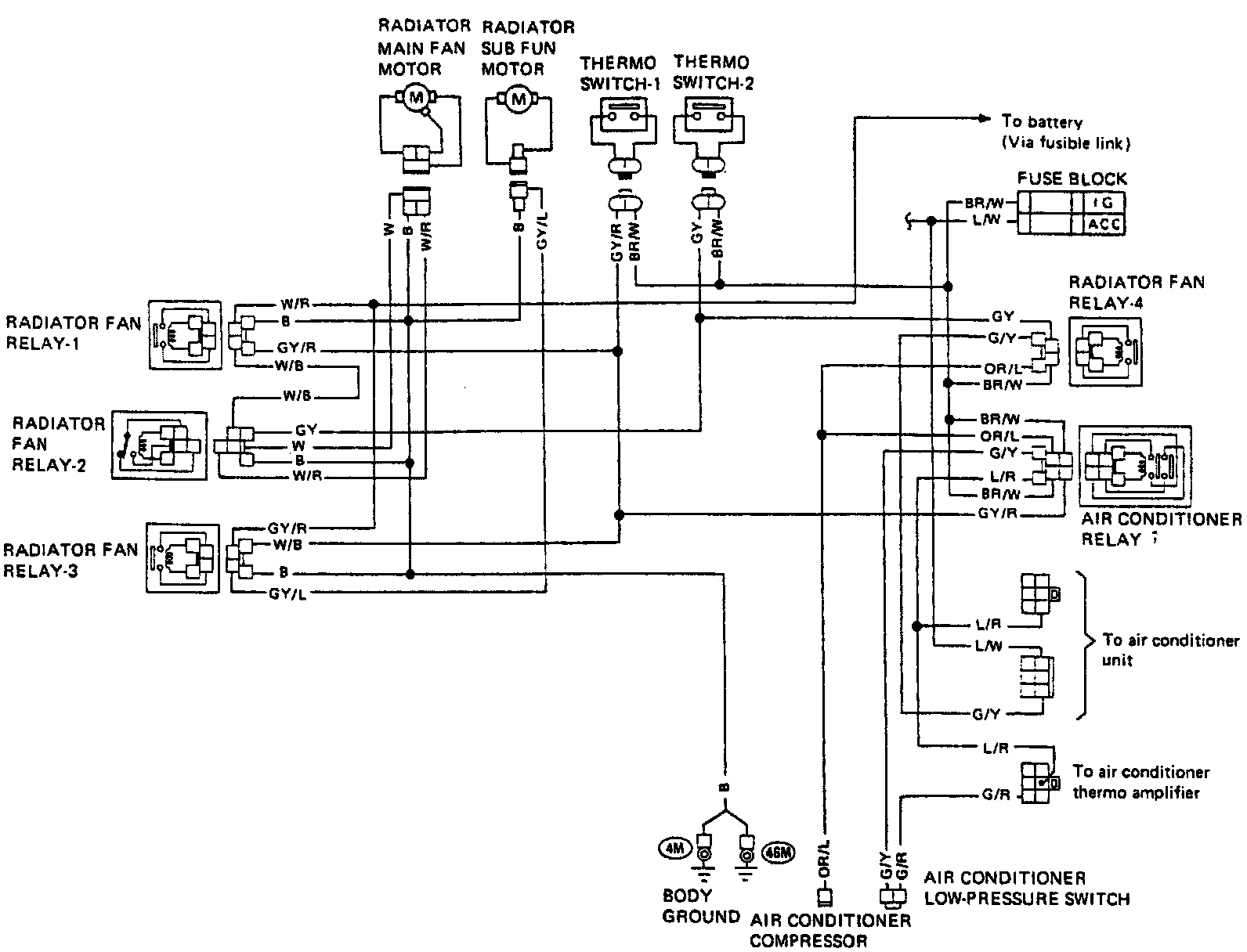

Fig. 153 Electric Cooling Fan Wiring Circuit.:
