Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Positive Crankcase Ventilation System - Stanza Wagon

Positive Crankcase Ventilation System - Stanza Wagon

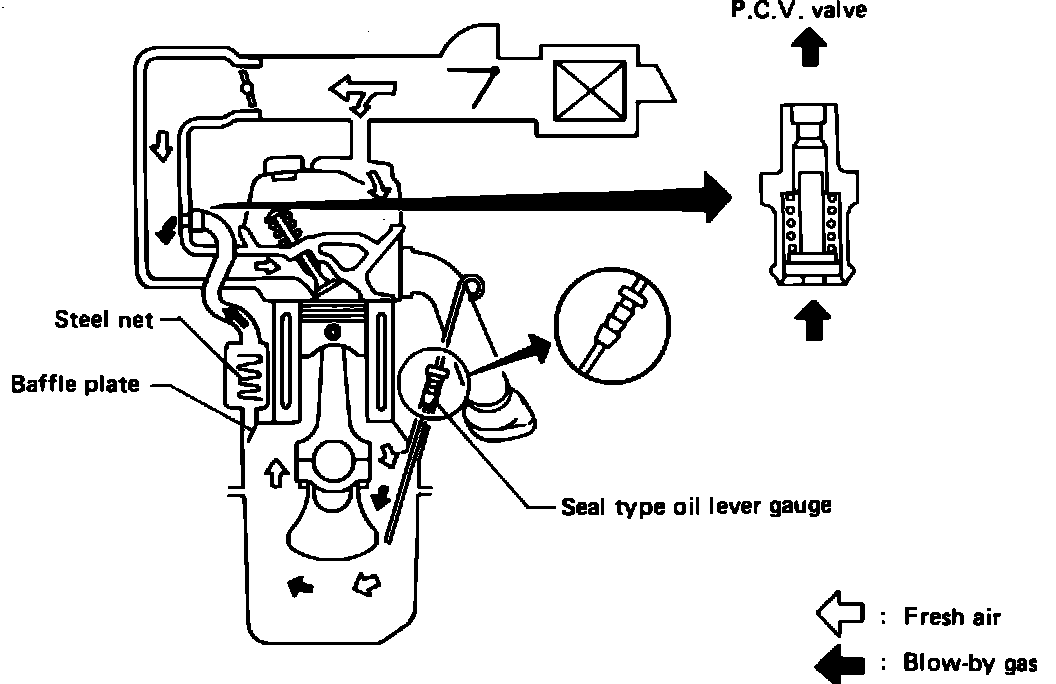

Fig. 60 Crankcase Ventilation System, Wagon.:
