Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Instrument Panel Circuit Board Wiring >> Wagon

Wagon

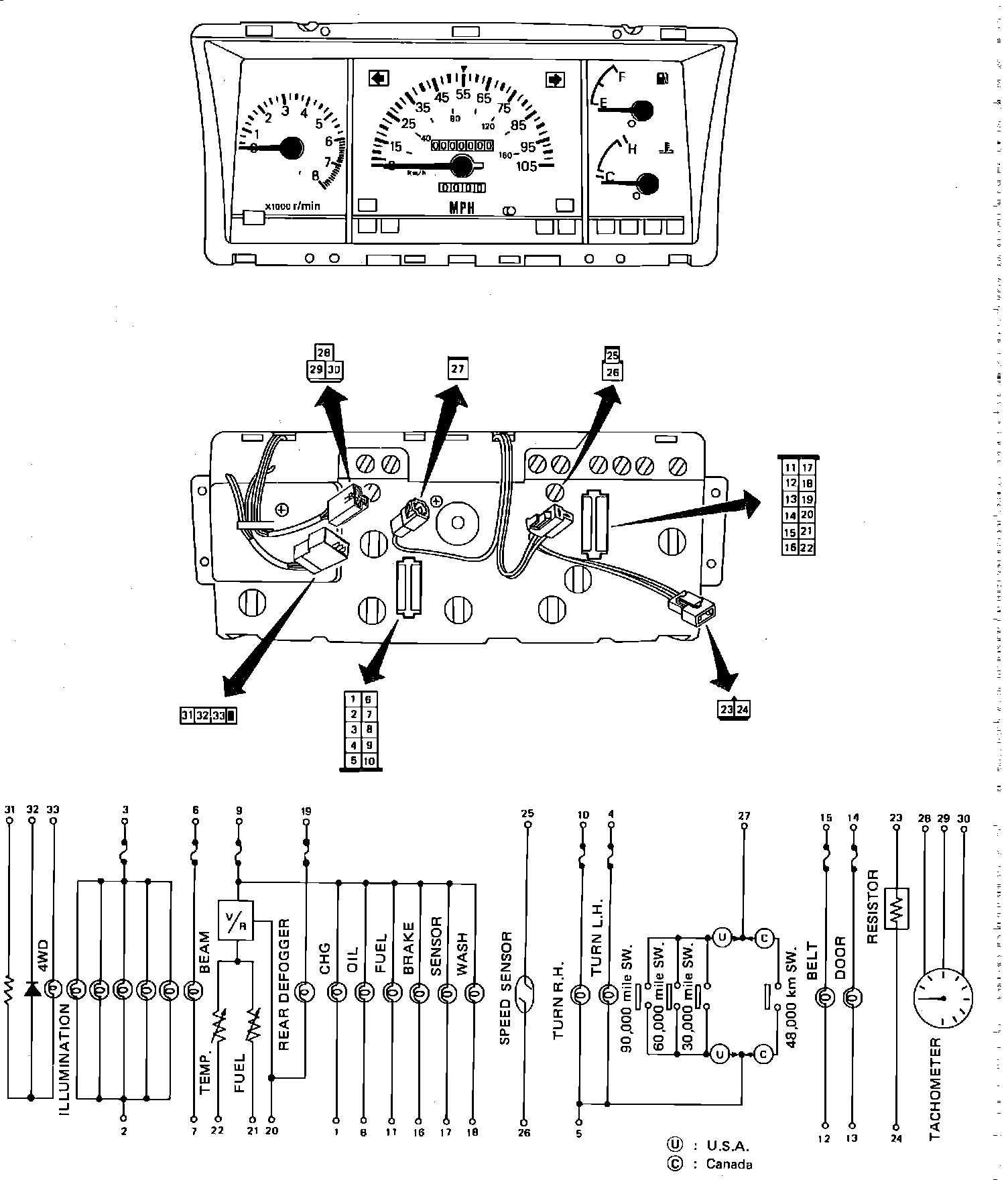

Fig. 388 Instrument Panel Printed Circuit. 4 X 4:
