Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Manual Air Conditioning >> Wiring Circuit Wagon

Wiring Circuit Wagon

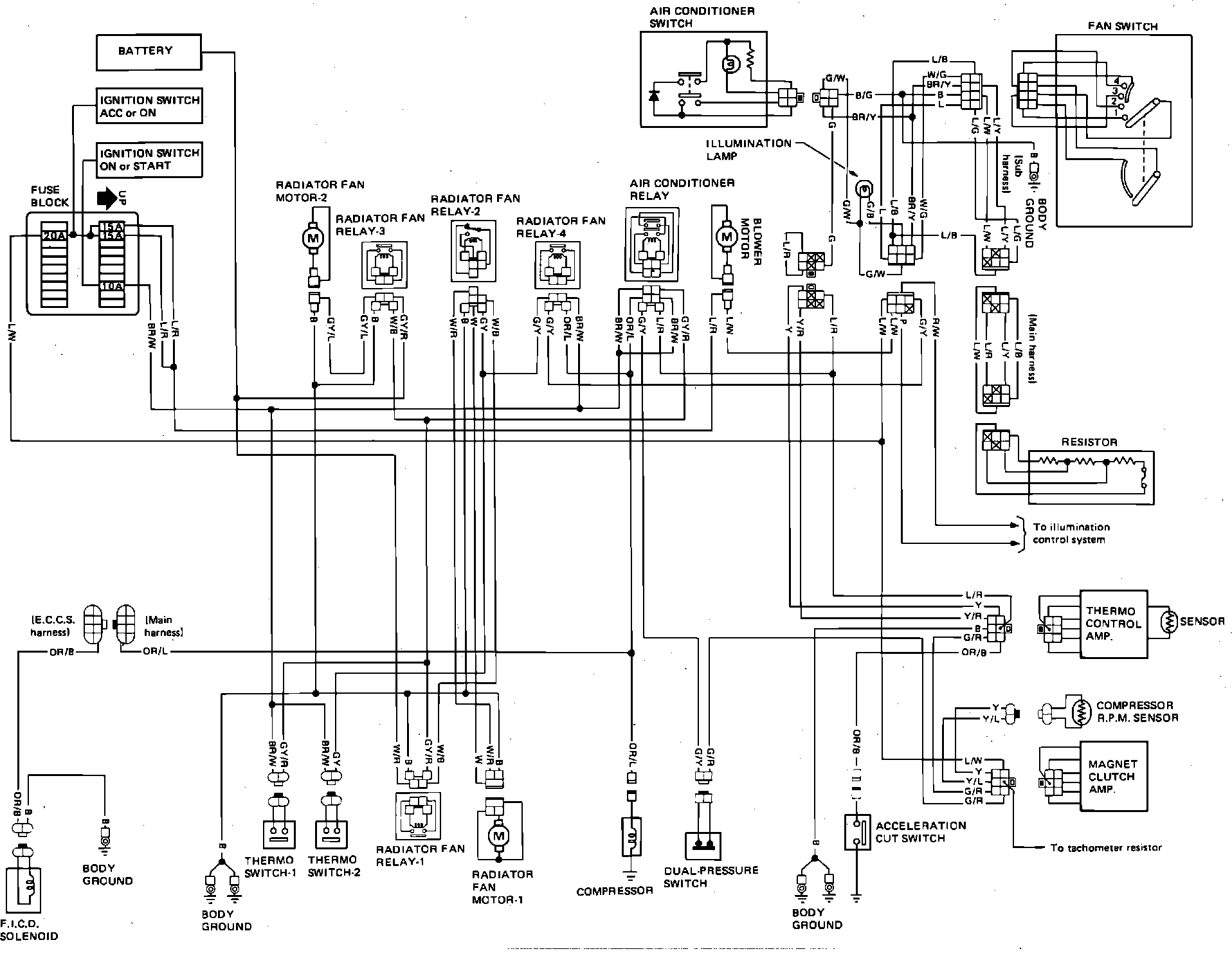

Fig. 114 Air Conditioning System Wiring Circuit:
