Home >> Nissan-Datsun >> 1987 >> Stanza Hatchback L4-1974cc 2.0L SOHC (CA20E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Charging System >> Exc. Wagon

Exc. Wagon

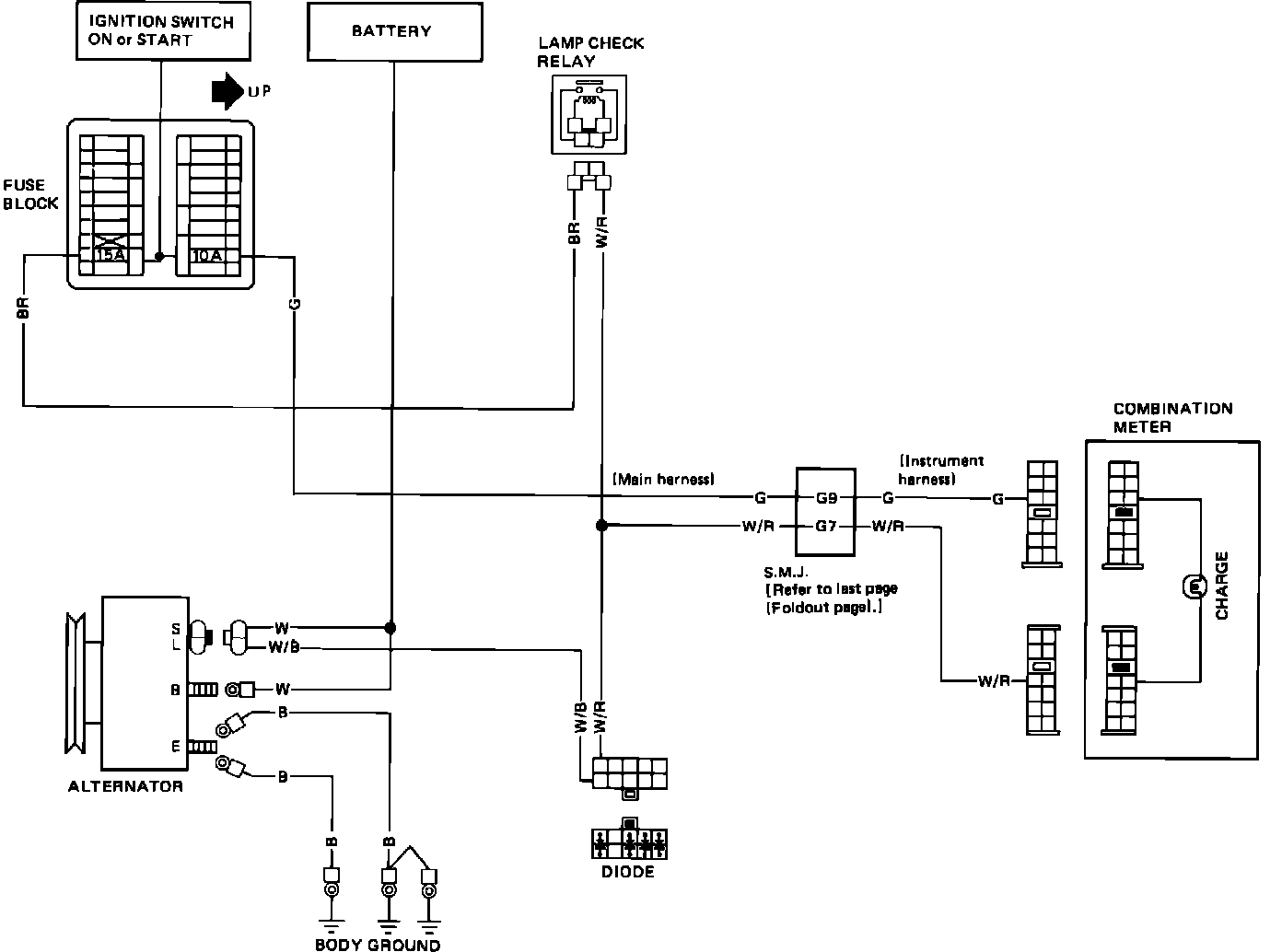

Fig. 117 Charging System Wiring Circuit:
