Doors - Fuel Filler Door Inoperative
88nissan12Classification: Section:
BF88-023 Body & Frame
Reference:
TECHNICAL BULLETIN TS88-159
Models:
1987-88 Stanza, 1985-88 Maxima Date:
December 8, 1988
FUEL FILLER DOOR INOPERATIVE
APPLIED MODEL 1987-88 Stanza (T12) 1985-88 Maxima (U11)
SERVICE INFORMATION

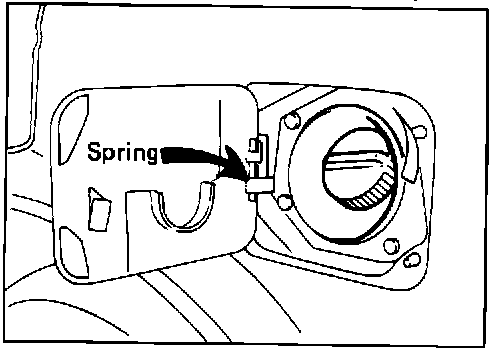

Some applied Stanza and Maxima vehicles may experience an inoperative fuel filler door condition. This may be caused by a deformation of the fuel filler door spring which prevents it from exerting enough force onto the door to push it open. The spring deformation is caused by interference with the fuel filler nozzle when the tank is filled. To correct this condition, a new fuel filler lid spring has been developed which does not interfere with the fuel filler nozzle. This spring is held in place by one Phillips-head screw.

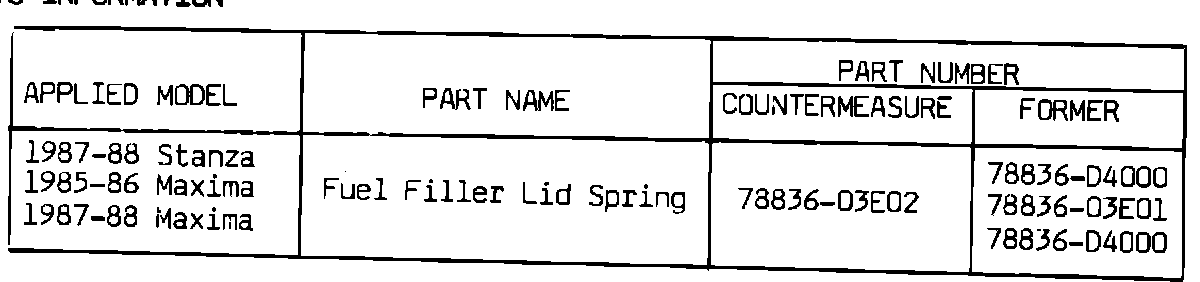

PARTS INFORMATION
