Radio/Stereo: Service and Repair

Exc. Wagon

1. Disconnect battery ground cable.
2. Remove lower center cluster lid from instrument panel.
3. Remove radio attaching screws, then disconnect electrical connectors from radio and remove unit from vehicle.
4. Reverse procedure to install.

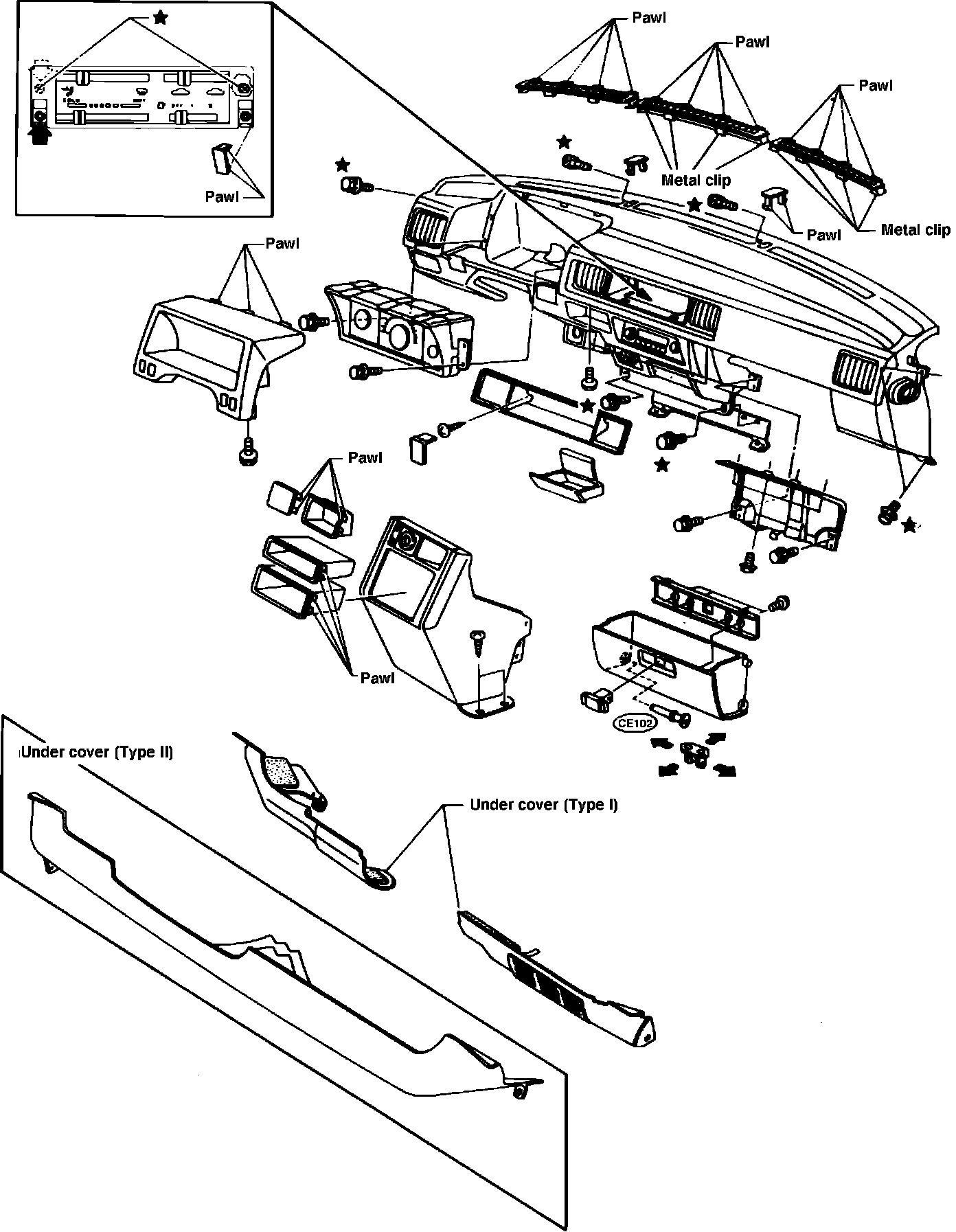

Fig. 13 Exploded view of instrument panel. Stanza Wagon:

Wagon

Refer to Fig. 13 for radio replacement on these models.
