Repair and Diagnosis
>>
Powertrain Management
>>
Application and ID
>>
Emission System Application Chart
Emission System Application Chart

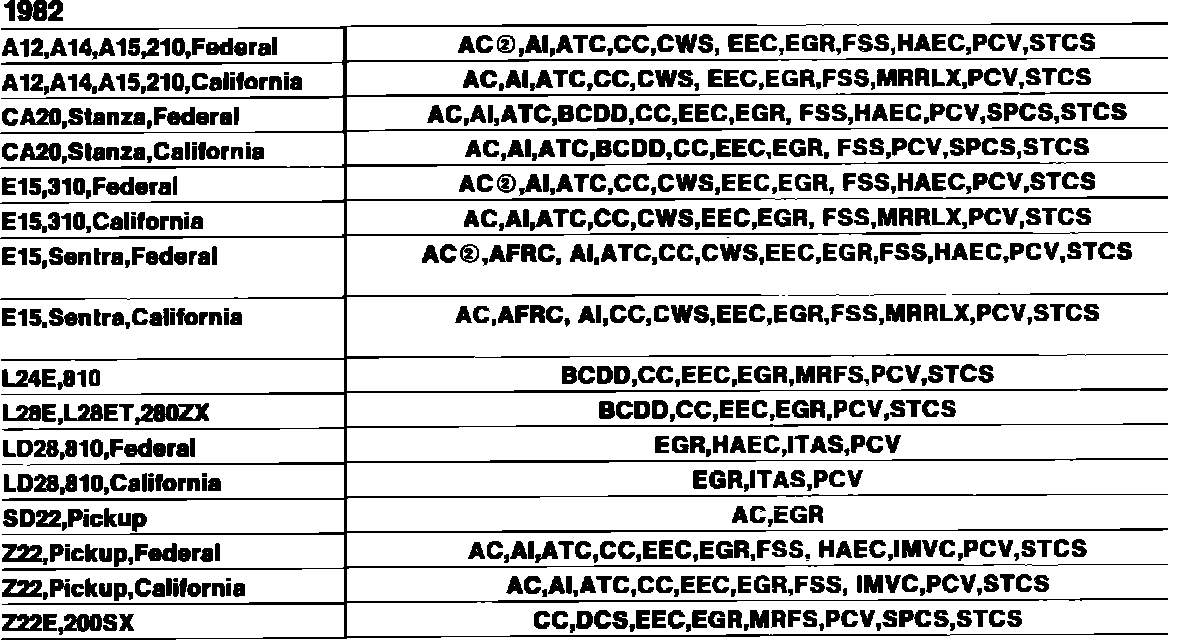

Fig. A APPLICATION CHARTS:

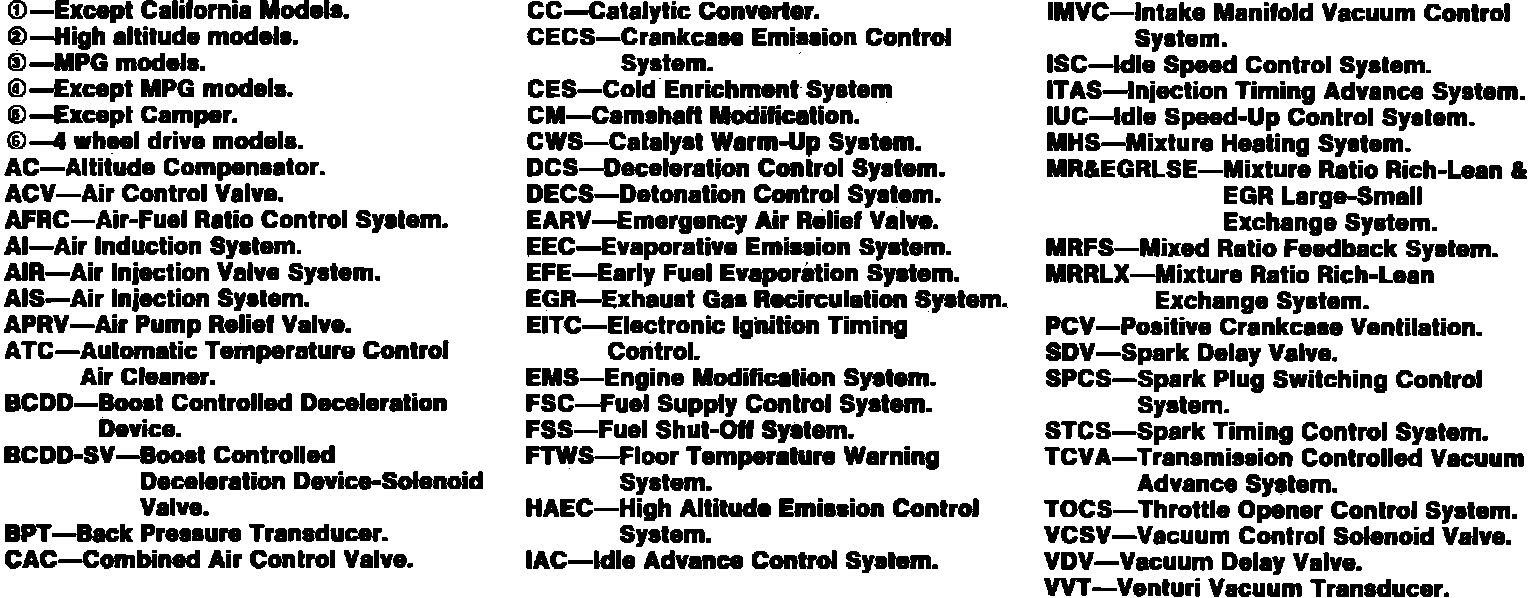

Fig. B APPLICATION CHARTS:
