Engine Cannot Be Started In P and N Position

2. Engine Cannot Be Started In P and N Position

SYMPTOM: Engine cannot be started with selector lever in P or N position.
Engine cannot be started with selector lever in P. Engine can be started with selector lever in D, 2, 1 or R position.

1. CHECK PNP SWITCH CIRCUIT


With CONSULT-II
Does "TCM INPUT SIGNALS" in Data Monitor show damage to PNP switch circuit?







Without CONSULT-II

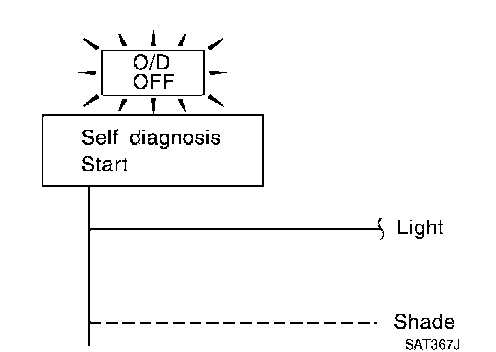

Does self-diagnosis show damage to PNP switch circuit?

Yes or No?

Yes >> Check PNP switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH" P0705.

No >> GO TO 2.









2. CHECK PNP SWITCH INSPECTION

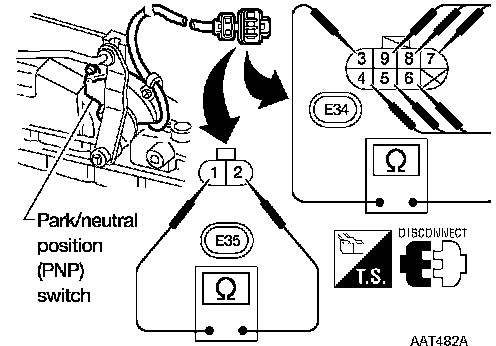

Check for short or open of PNP switch 2-pin connector.

OK or NG?

OK >> GO TO 3.

NG >> Repair or replace PNP switch.


3. CHECK STARTING SYSTEM
Check starting system.

OK or NG?

OK >> INSPECTION END.

NG >> Repair or replace damaged parts.
