Manual Transmission/Transaxle: Testing and Inspection

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

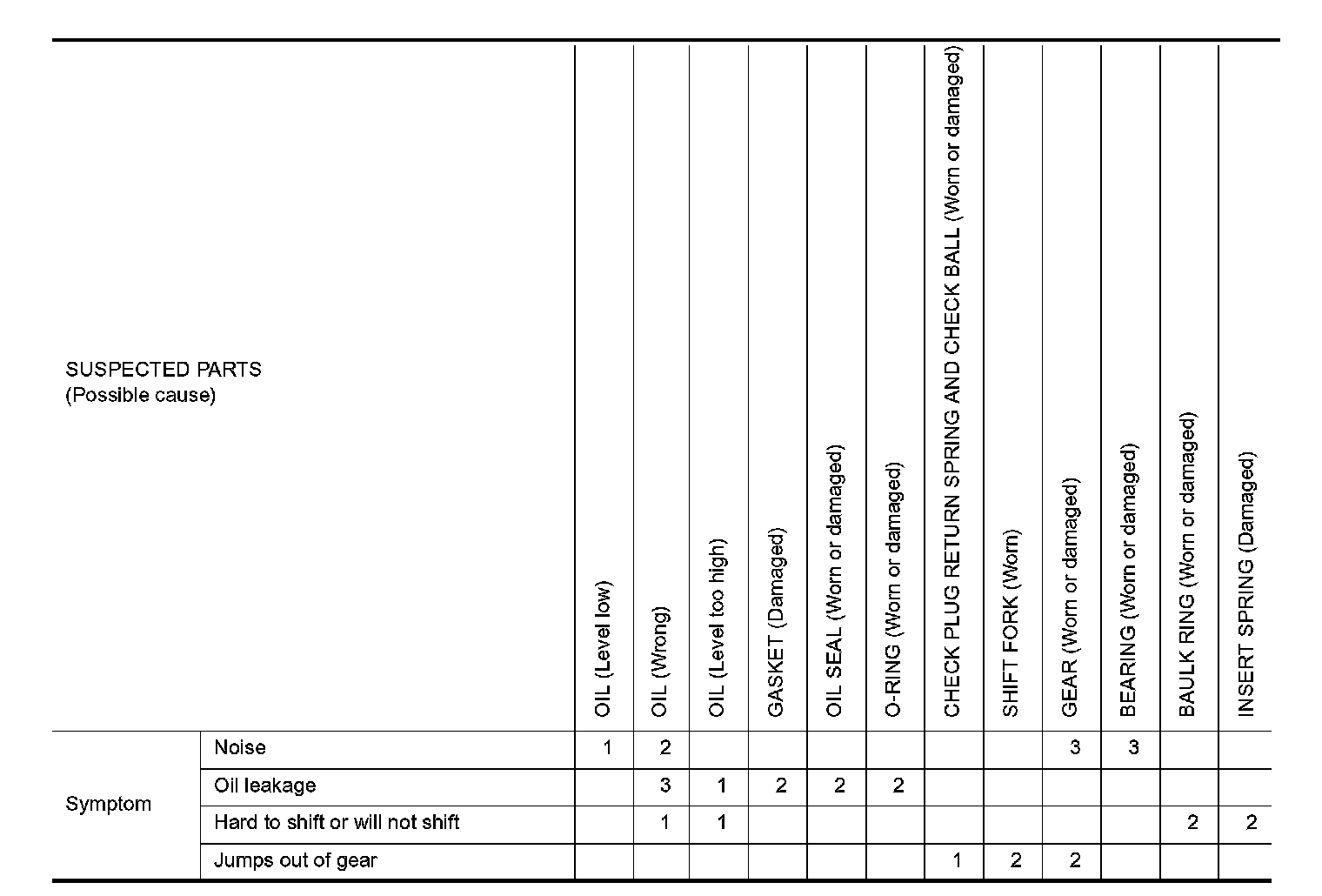

NVH Troubleshooting Chart / FS5R30A - Manual Trans.:

Use the chart to help you find the cause of the problem. The numbers indicate the order of the inspection. If necessary, repair or replace these parts.
